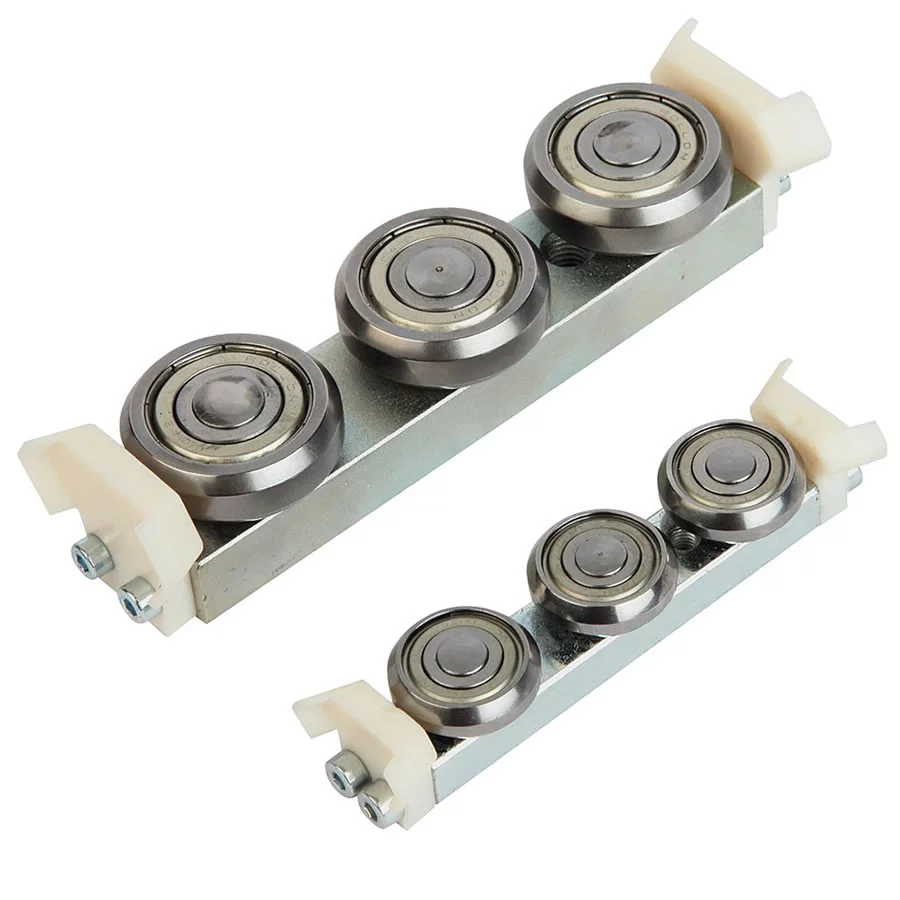

Norelem 21322 Roller carriages steel
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 21322 Roller carriages steelView CAD Files
Product Specification Datasheet for Norelem 21322 Roller carriages steelView CAD Files
Roller carriages with lifetime lubricated ball bearings and polyamide wipers that protect the tracks from dirt. A simple adjustment of the middle roller makes the roller carriage play-free or sets the desired preload in the rail. High traverse speeds of up to 7 m/s and extremely quiet (faster and quieter than systems with recycling ball bearings).
- Material:
Race body steel.
Wiper modified polyamide.
Rollers steel 1.3505. - Version: Race body electro zinc-plated.
- Application temperature -30°C to +120°C.
- On request: Roller carriages with 4 or 5 rollers.
Order No: 21322-1118060 21322-1128080 21322-1135100 21322-1143120 21322-1218060 21322-1228080 21322-1235100 21322-1243120
