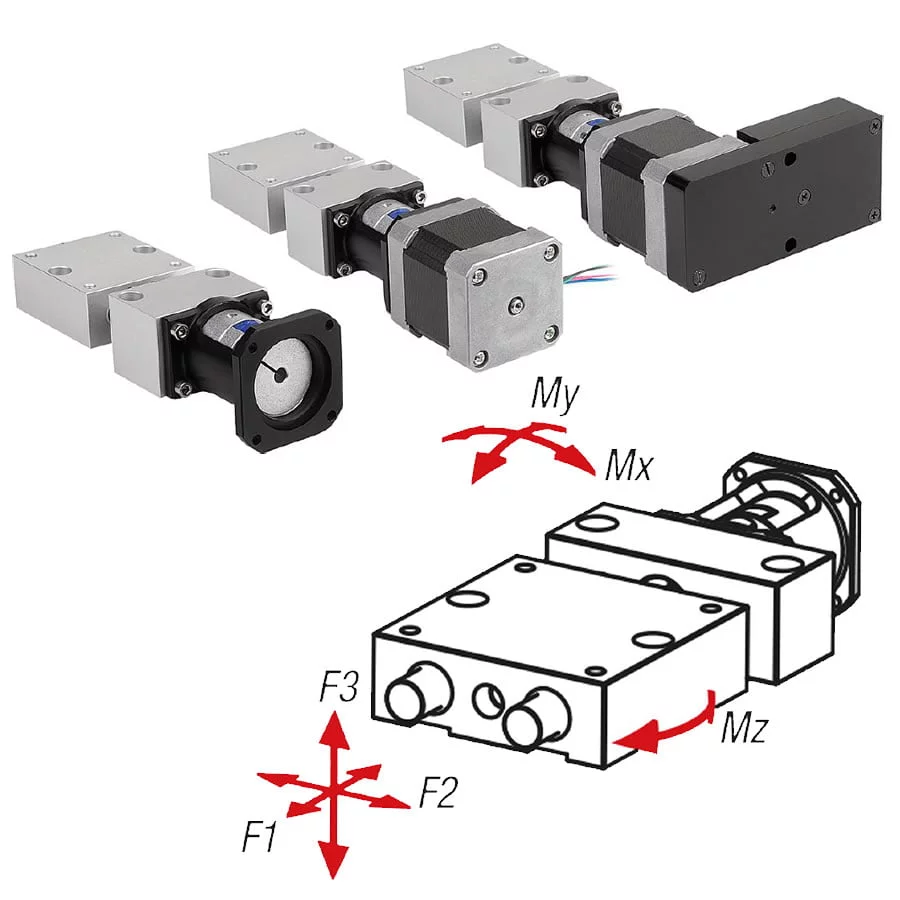

Norelem 21080 Positioning stages short with coaxial electric drive

Positioning stages for motorised adjustment and positioning tasks. The plain bearings and spindle nuts are suitable for dry running, however lubrication with
a grease for plastic plain bearings is recommended. The suitable programming software and interface cable for the stepper motor with positioning control are
available as accessories (25000-15).

The stepper motor with a resolution of 200 increments per rotation allows a single direction calculated positioning accuracy of 0.005 mm. The absolute single direction positioning accuracy is 0.01 mm. The system can be operated with a switch-on time of 100%.

Step motor: software and handbook

Order No: 21080-080 21080-0811 21080-0821 21080-120 21080-1211 21080-1221
