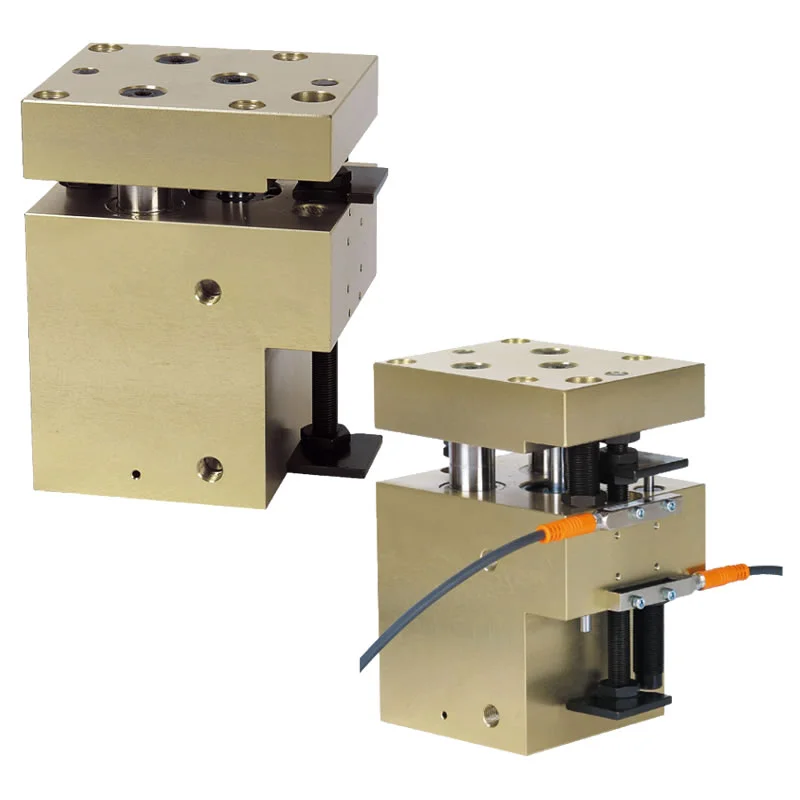

Norelem 20056 Lifting units pneumatic with round guides
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 20056 Lifting units pneumatic with round guidesView CAD Files
Product Specification Datasheet for Norelem 20056 Lifting units pneumatic with round guidesView CAD Files
Robust maintenance-free pneumatic lifting units with sealed ball guide. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 μm), dried, oiled or unoiled. Compressed air connection R1/8. Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
- Robust design with sealed ball guide
- High repeat accuracy of ±0.02 mm
- Housing material: high-strength anodised aluminium
- Stop system material: hardened and black oxidised steel
Order No: 20056-9050 20056-9075 20056-9100
