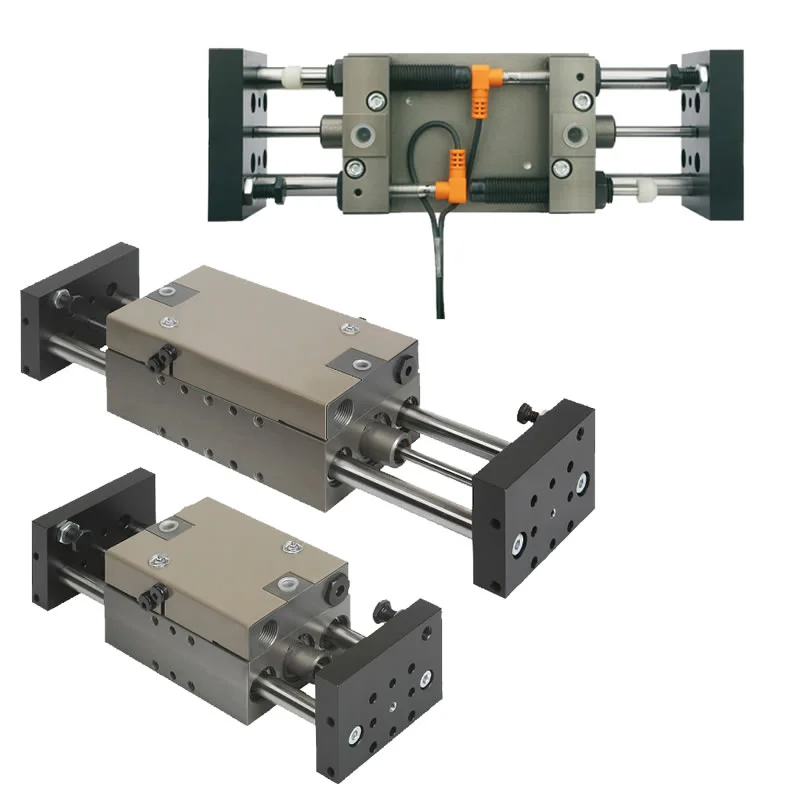

Norelem 20000 Linear modules pneumatic with two round guides

Maintenance-free pneumatic linear modules with two precision steel shafts and ball guide bushing with wipers. Double acting cylinder drive. All fastening threads have threaded inserts. The as accessory available shock absorbers and proximity switches can be integrated (no protruding edges). Positive fit construction for hundred per cent reproducibility. Combinations in all sizes and stroke variants are
feasible without adapter plates. Available with locking cartridge as stroke deviation safeguard.

• Drive via double action cylinder
• Repeat accuracy ±0.01 mm
• Travel: 40 to 300 mm
• Force: 100 to 660 N
• Compact design, easy to assemble and maintain
• Material: Body and flange plate EN AW-5754; Guide shafts steel


  ---

  Order No: 20000-21040 20000-21060 20000-21080 20000-21100 20000-22060 20000-22090 20000-22120 20000-22150 20000-23080 20000-23120 20000-23160 20000-23200 20000-25120 20000-25180 20000-25240 20000-25300
