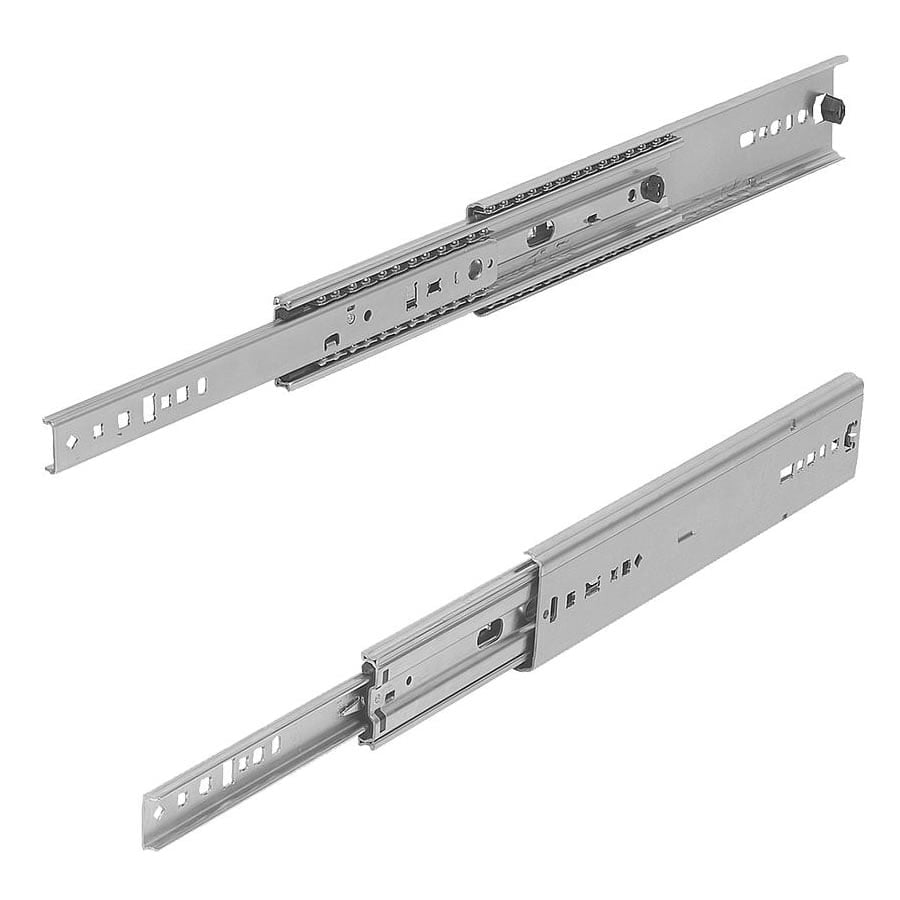

K1717 Kipp Telescopic slides, steel for side mounting, full extension, load capacity up to 160 kg

Installation instruction for telescopic slides K1717
Technical information for telescopic slides
Overview of items telescopic slides

By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. Latches in closed position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire
extension length is used. The load capacities specified refer to the maximum value for 80,000 cycles.

The load capacity is ca. 75% lower by horizontal mounting. Suitable for a slide spacing up to 1,000 mm.

• Material: Slides steel. Ball cages steel. Balls, steel.
• Version: Slides electro zinc-plated. Ball cages, electro zinc-plated. Balls hardened.
• Note for ordering: Sold in pairs
• Temperature range: -20°C to +70°C.
• Advantages: Latches in closed position. Quick frontal release. Suitable for flat mounting.
