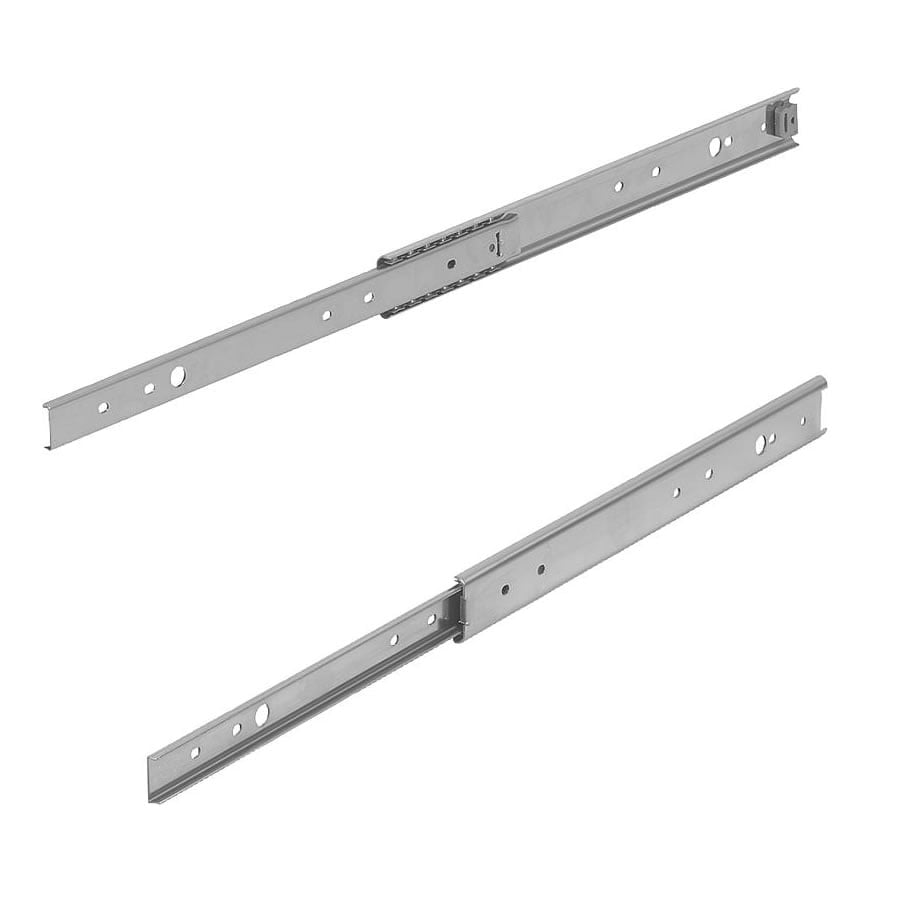

K1712 Kipp Telescopic slides, stainless steel for side mounting, partial extension, load capacity up to 65 kg

Installation instruction for telescopic slides K1712
Technical information for telescopic slides
Overview of items telescopic slides

On telescopic slides with partial extension, the travel is less than the installed length. Latches in closed position. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used.

The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 or 80,000 cycles. The load capacity is ca. 75% lower by horizontal mounting. The head height of the fastening screws should not exceed 2.5 mm otherwise there is a risk of collision with other parts of the slide.

• Material: Slides stainless steel 1.4301. Ball cage stainless steel 1.4301. Balls stainless steel 1.4034.
• Version: Slides bright. Ball cages bright. Balls bright.
• Note for ordering: Sold in pairs.
• Advantages: Latches in open position. Suitable for flat mounting. Light running.
