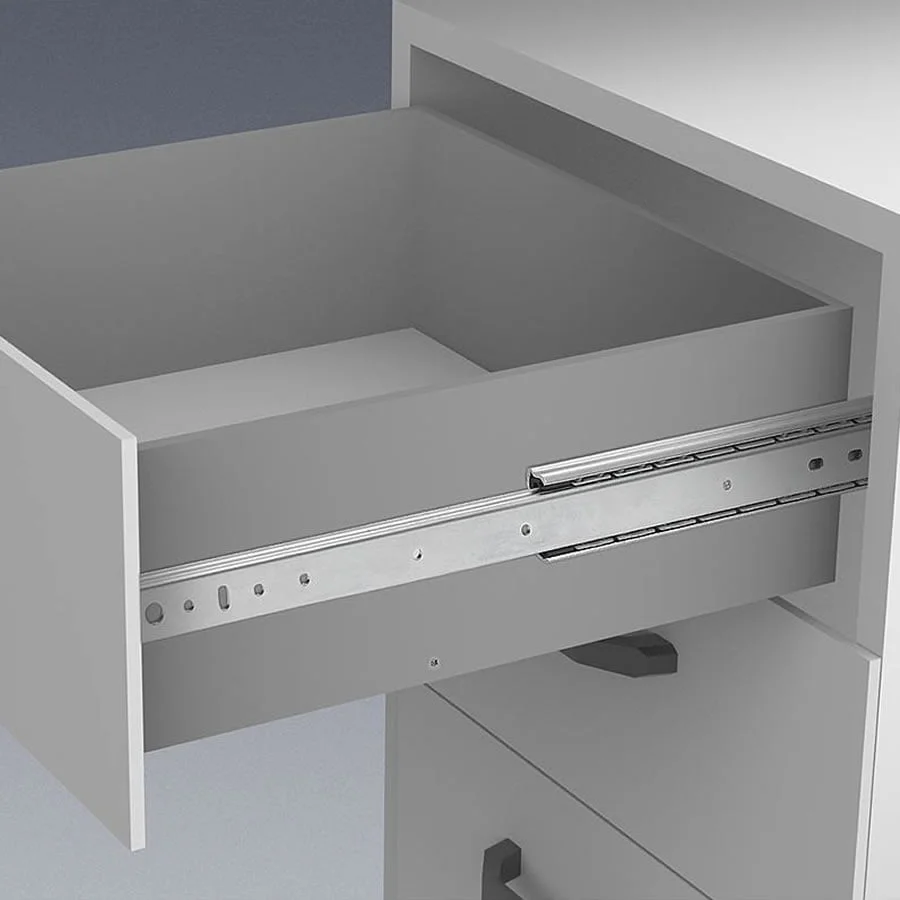

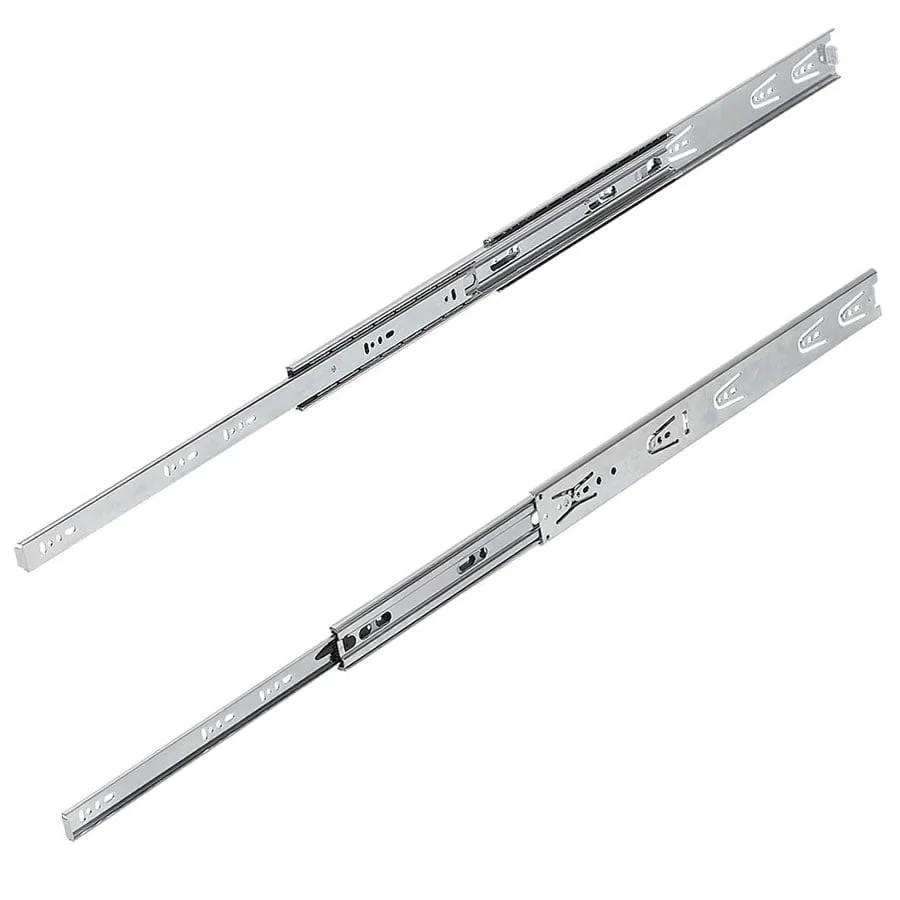

K1578 Kipp Telescopic slides, steel for side mounting, over-extension, load capacity up to 60 kg
View product information as a PDF datasheet:
Product Specification Datasheet for K1578 Kipp Telescopic slides, steel for side mounting, over-extension, load capacity up to 60 kgView CAD Files
Product Specification Datasheet for K1578 Kipp Telescopic slides, steel for side mounting, over-extension, load capacity up to 60 kgView CAD Files
Installation instruction 1 for telescopic slides K1578
Installation instruction 2 for telescopic slides K1578
Quality criteria Telescopic slides
Overview of items telescopic slides
On telescopic slides with over-extension, the travel is greater than the installed length. Interlocking in closed position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles.
The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1.
- Material: Slides steel. Ball cages steel and plastic. Balls C-steel.
- Version: Slides electro zinc-plated and trivalent blue passivated. Balls hardened.
- Note for ordering: Supplied in pairs
Categories: Kipp Telescopic Slides, Telescopic slides
Tag: kipp
Order No:
