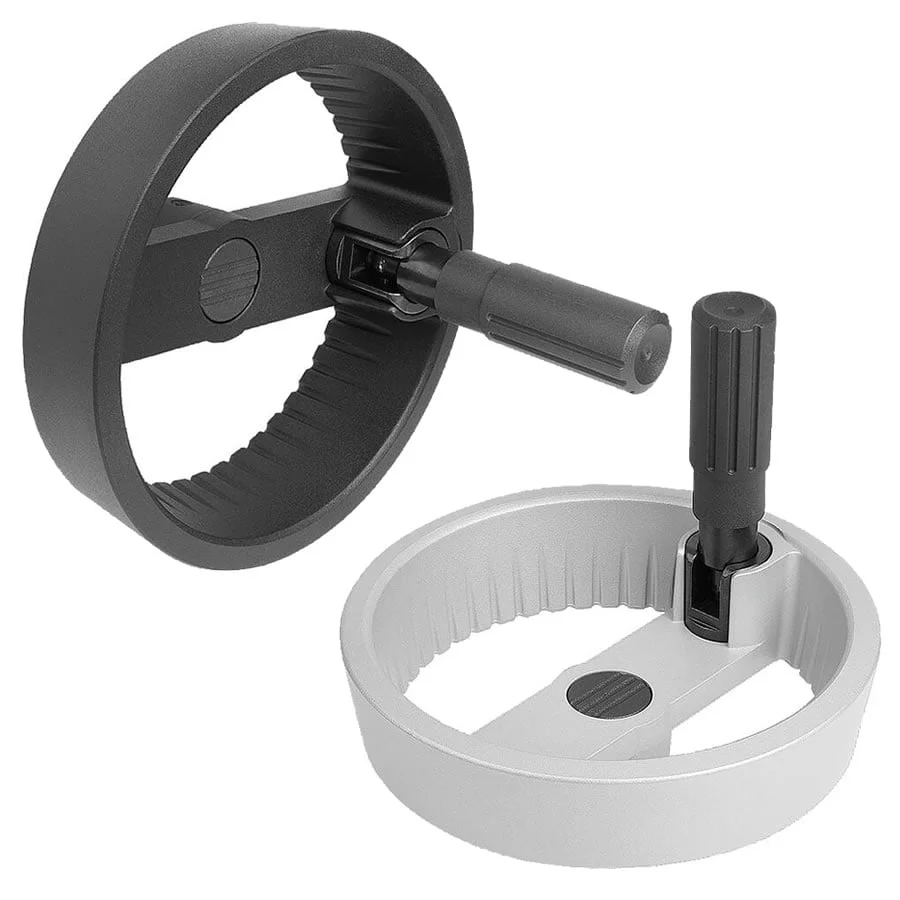

K1525 Kipp 2-spoke handwheels, aluminium with fold-down cylinder grip

Wheel rim radial and axial run-out ≤ 0.4 mm.

Available in 4 forms:

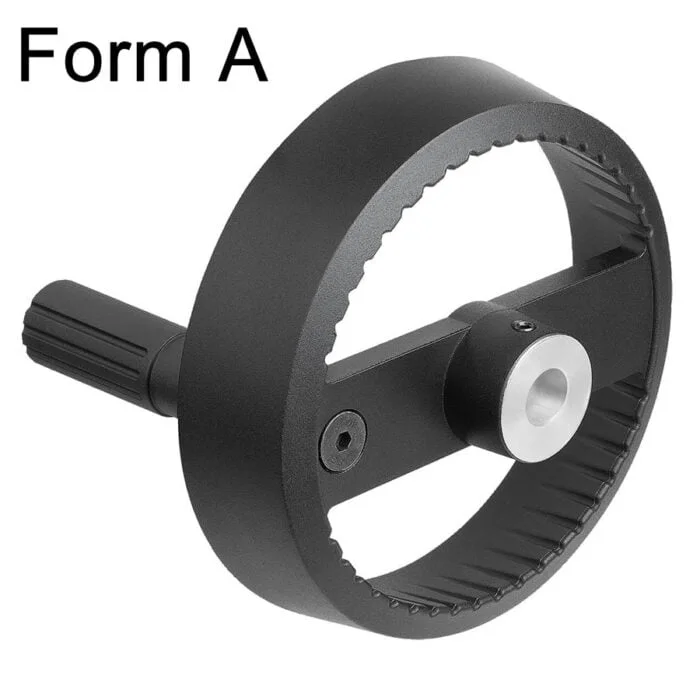

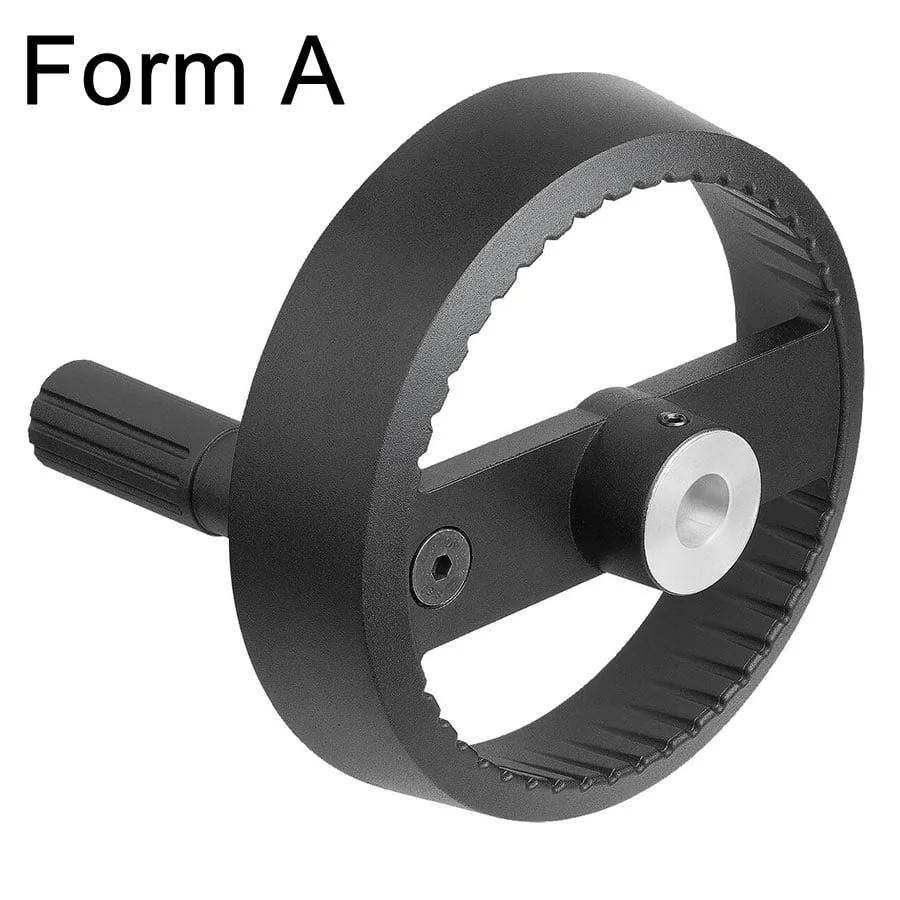

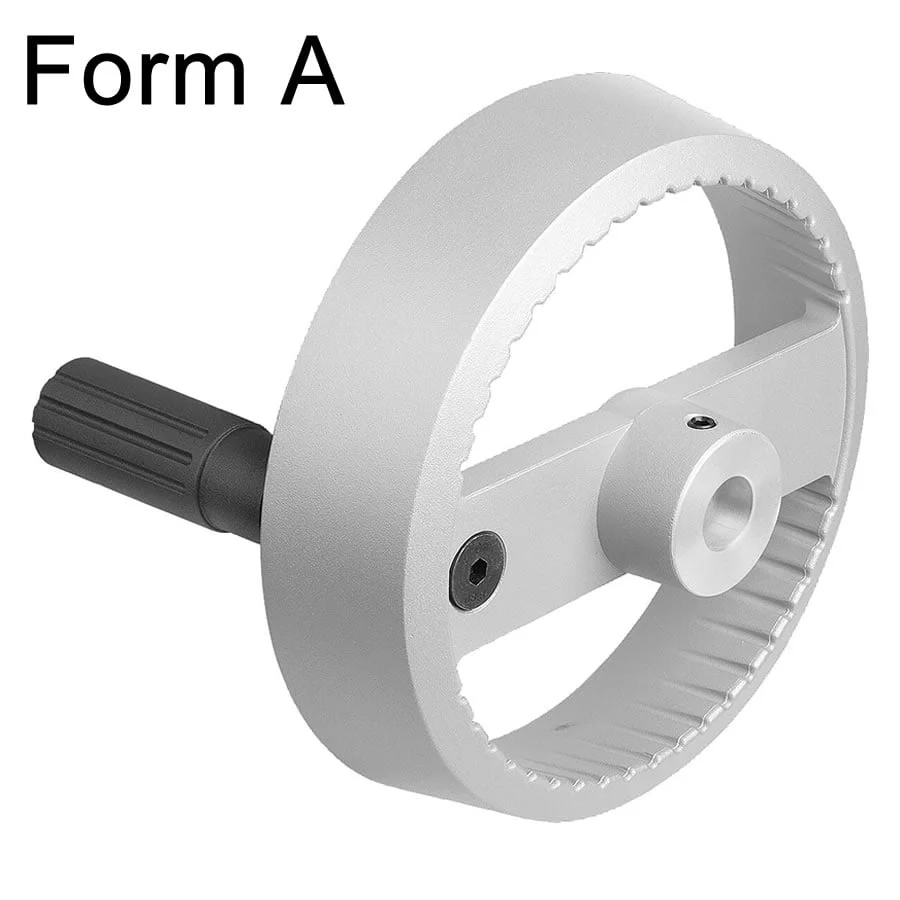

• Form A – with reamed hole and transverse bore
• Form B – reamed hole with slot (keyway) and transverse bore

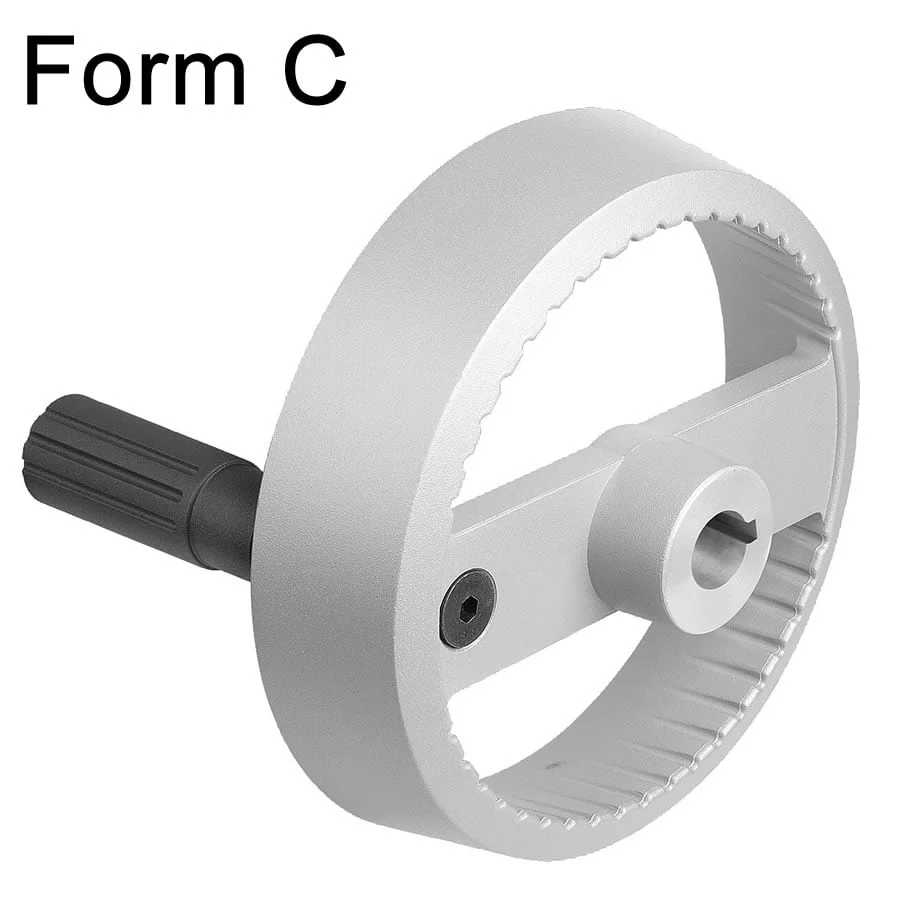

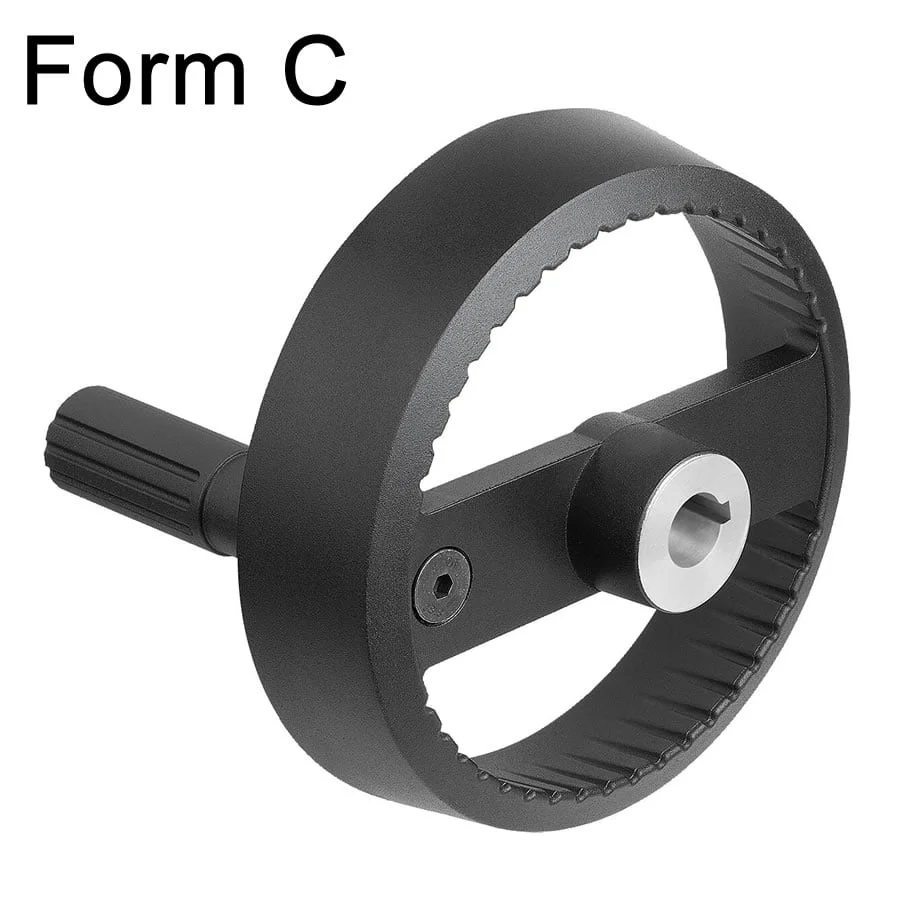

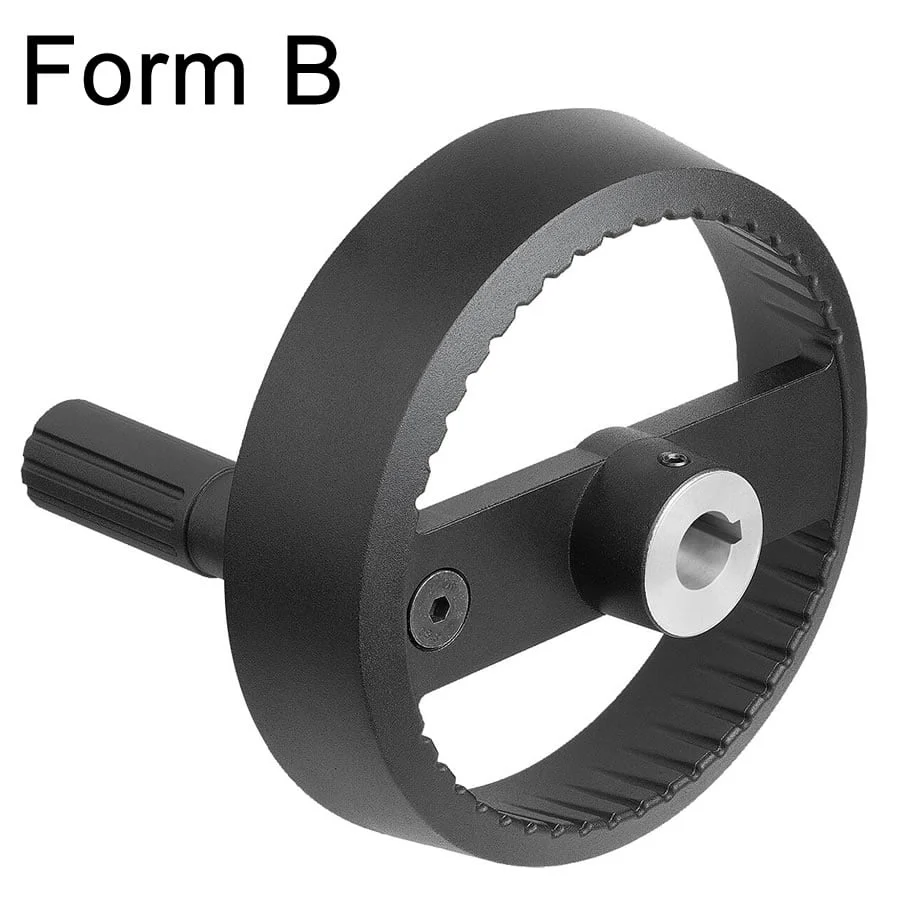

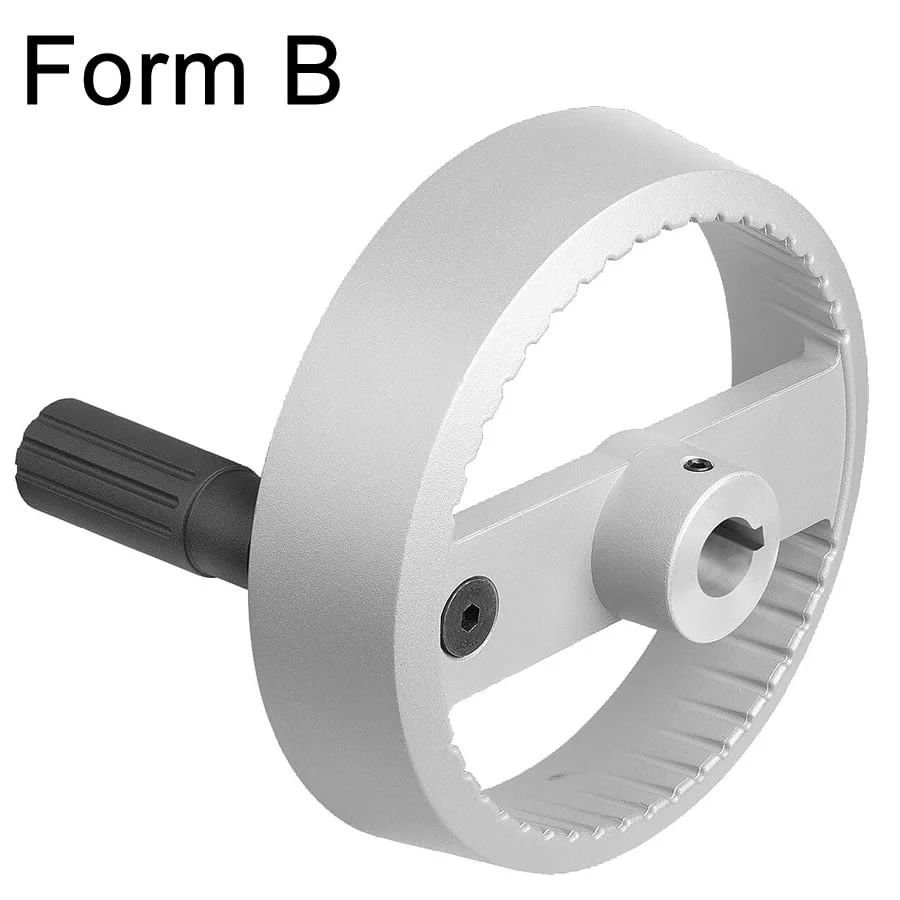

• Form C – reamed hole with slot (keyway)

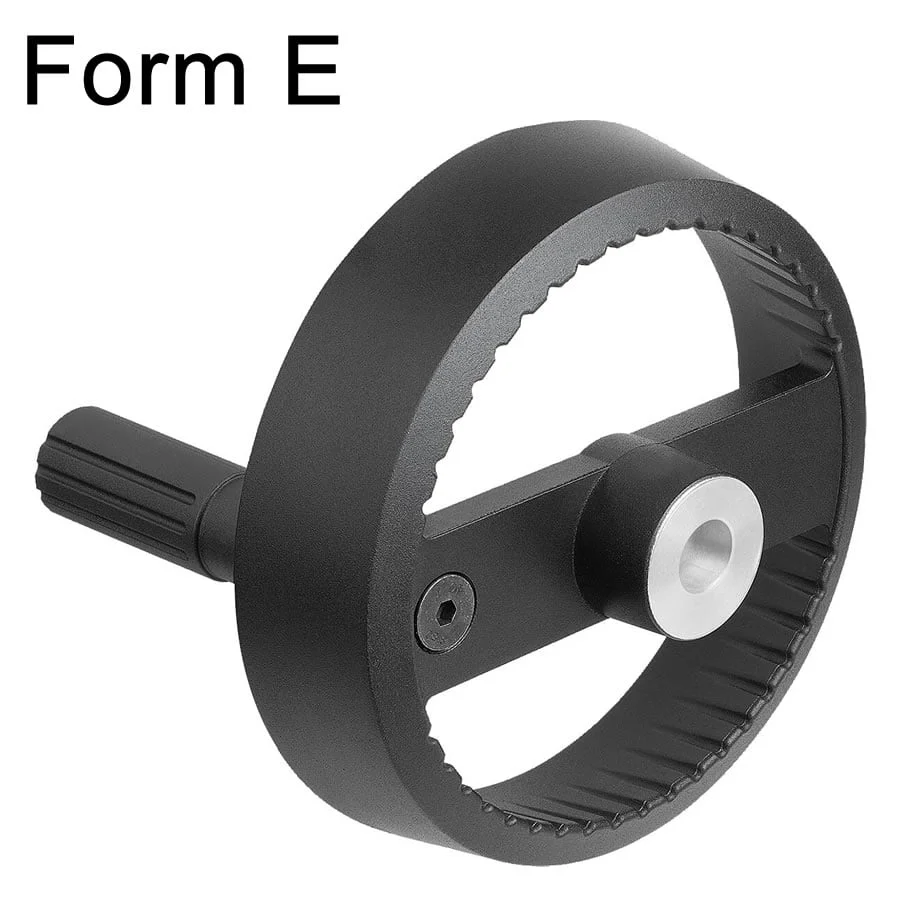

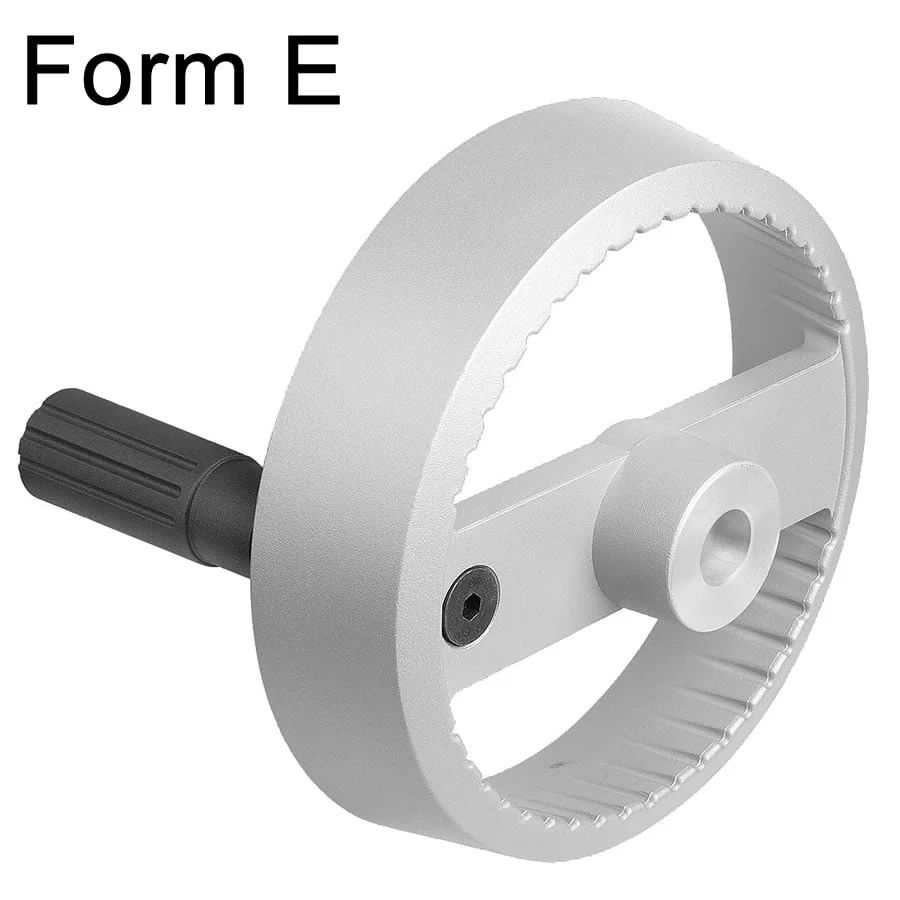

• Form E – with reamed hole

Description:

• Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub screw, steel grade 45 H, black.
• Version: Black or silver powder-coated.
• Assembly: The hub cover is supplied unassembled. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173. By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.

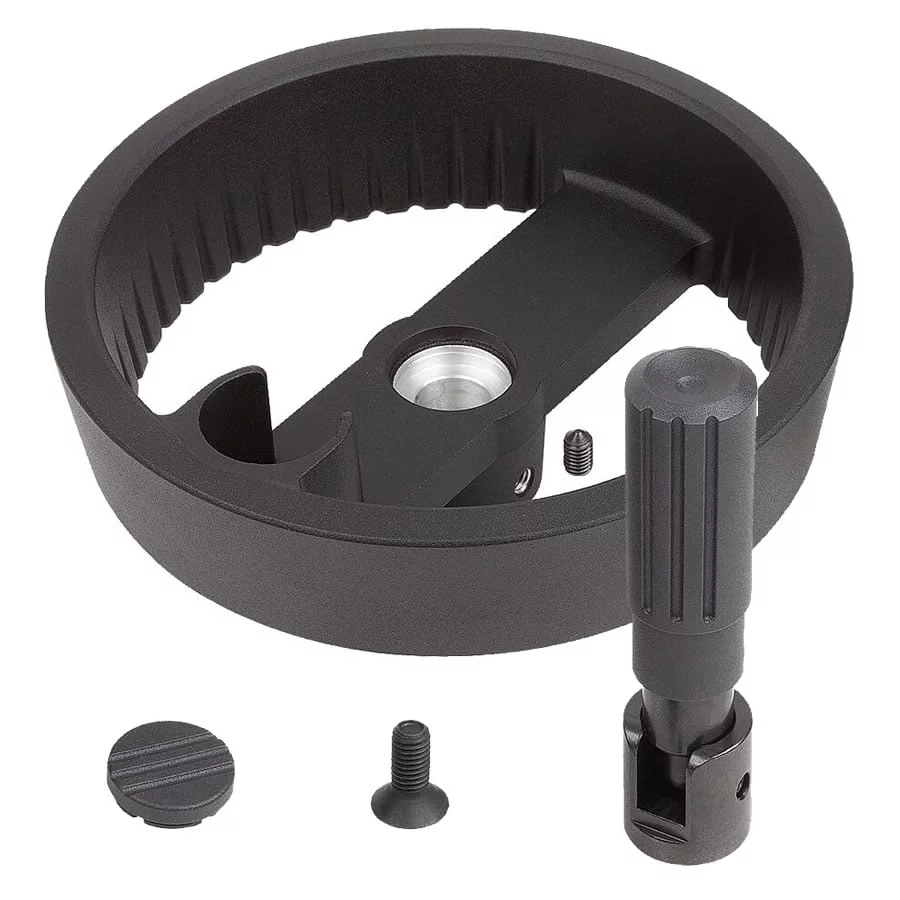

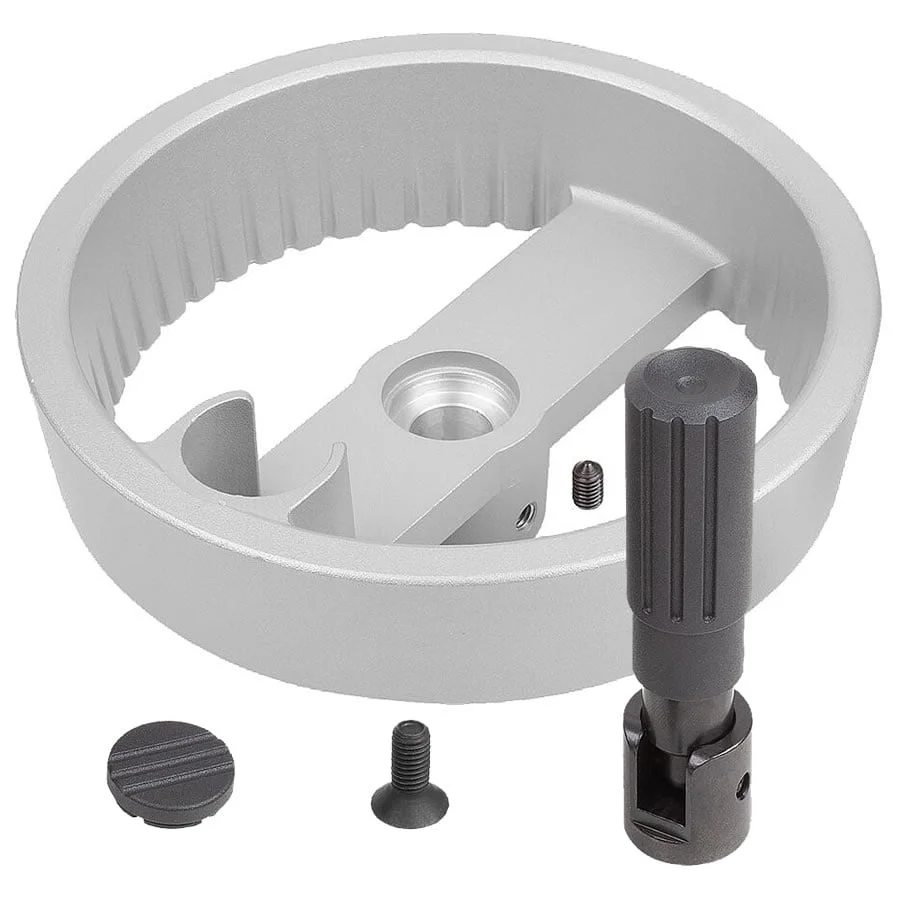

• Supplied with: Aluminium handwheel. Hub cover. Fold-down cylinder grip. ISO 4027 grub screw (type with transverse bore).
• Accessory: K0173 Handwheel washers. K1160 Socket head screws with low head DIN 6912.

• RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
