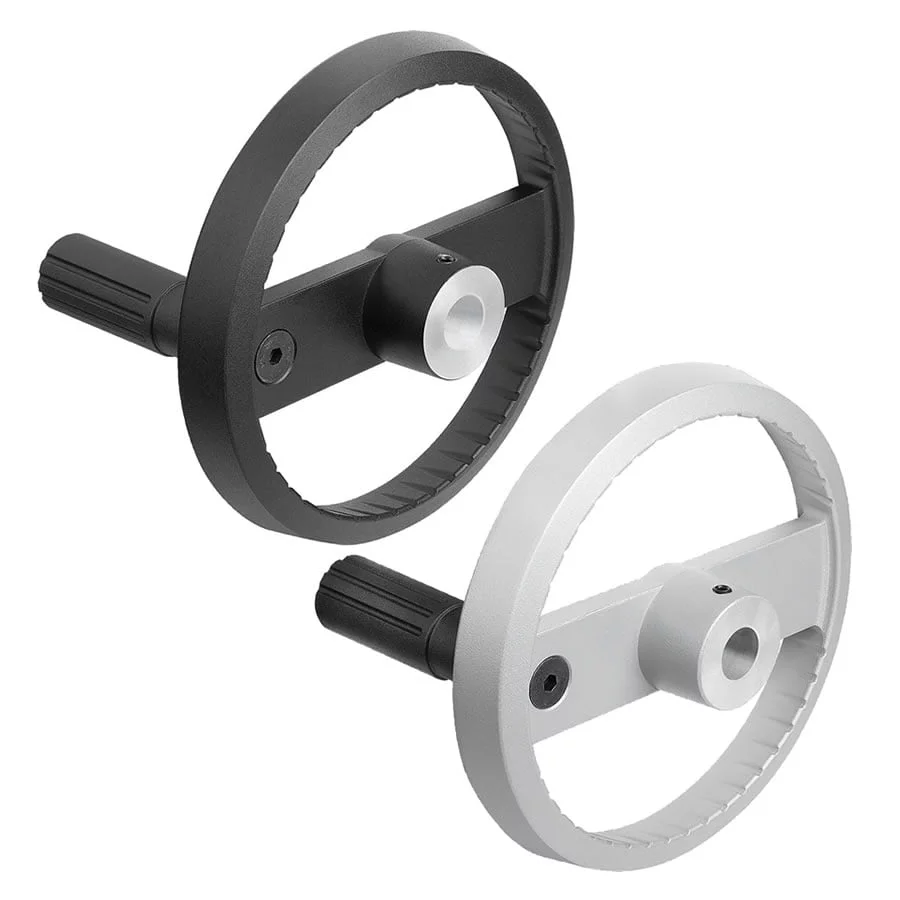

K1524_A Kipp 2-spoke handwheels, aluminium, with revolving cylinder grip, Form A with reamed hole and transverse bore
View product information as a PDF datasheet:
Product Specification Datasheet for K1524_A Kipp 2-spoke handwheels, aluminium, with revolving cylinder grip, Form A with reamed hole and transverse boreView CAD Files
Product Specification Datasheet for K1524_A Kipp 2-spoke handwheels, aluminium, with revolving cylinder grip, Form A with reamed hole and transverse boreView CAD Files
- Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub screw, steel grade 45 H, black.
- Version: Black or silver powder-coated.

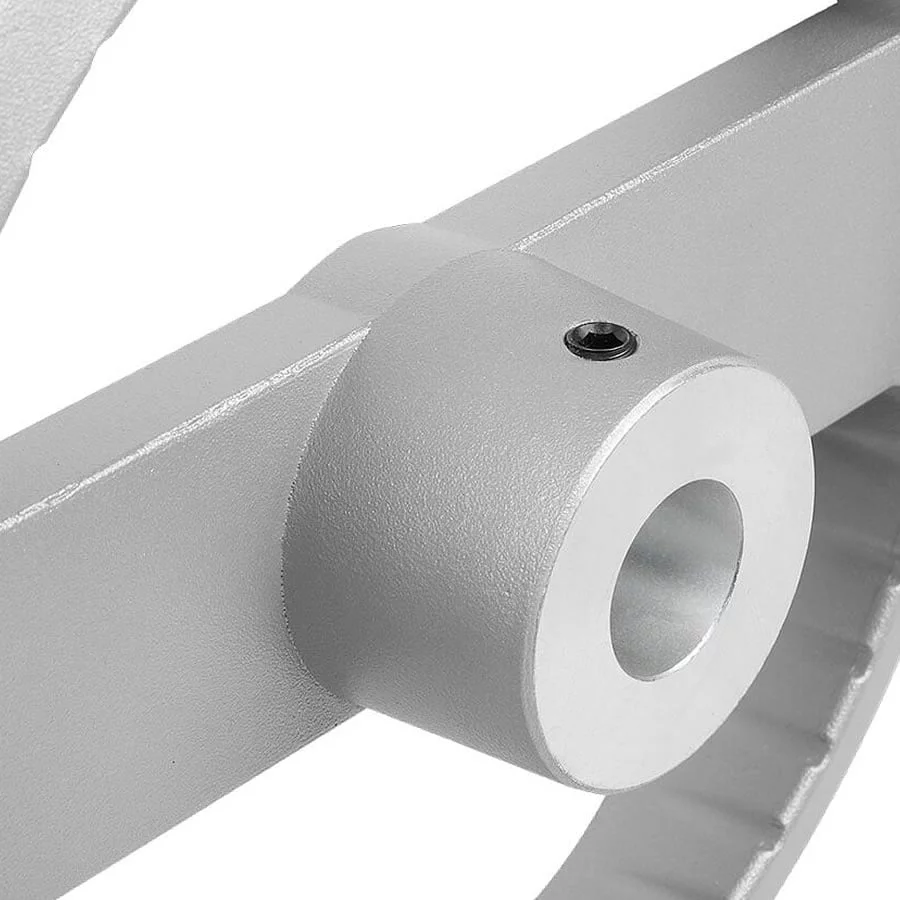

- Assembly: The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173. By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.

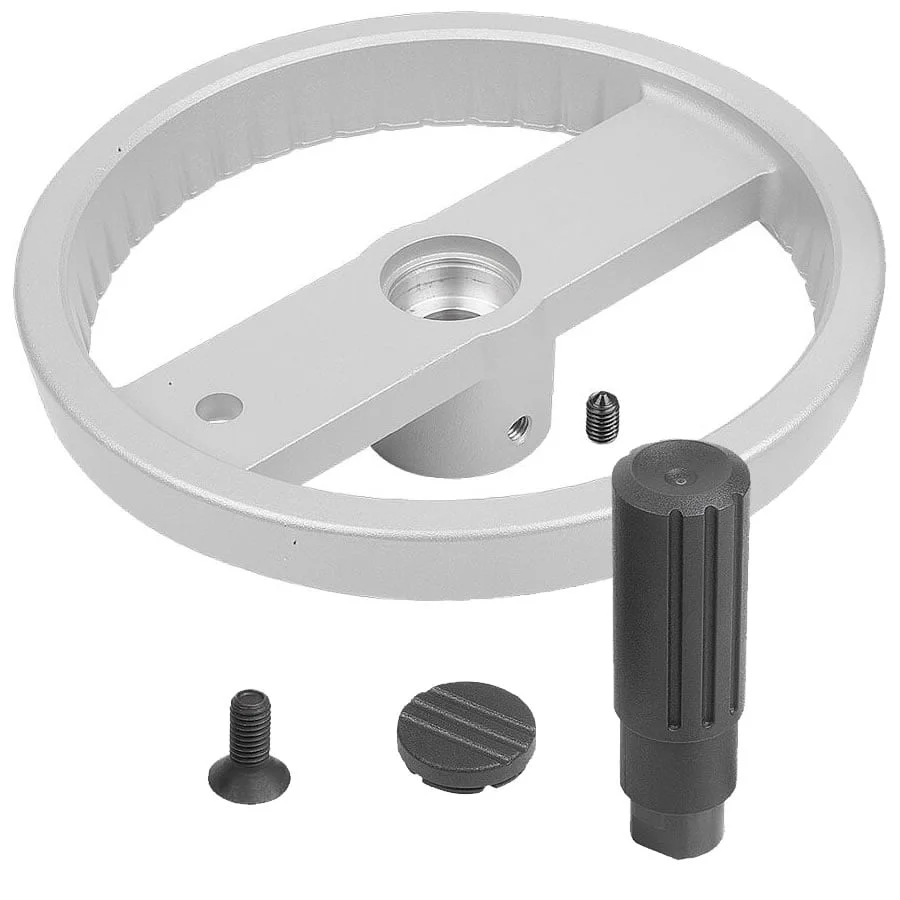

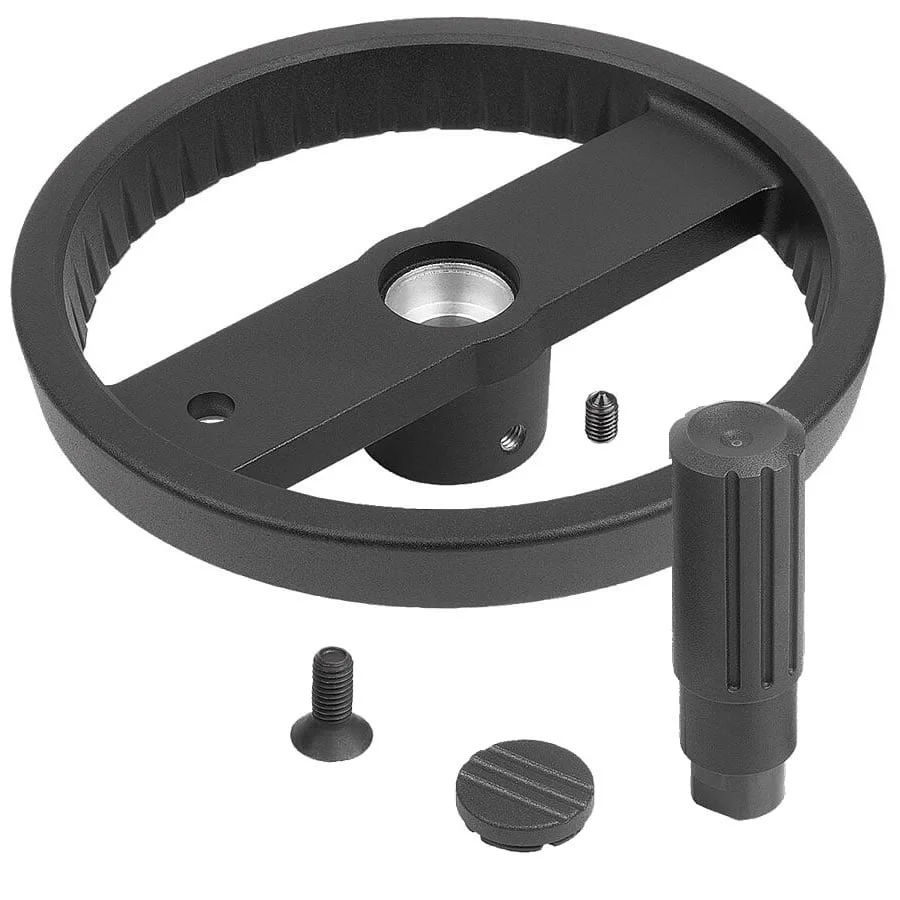

- Supplied with: Aluminium handwheel. Hub cover. Revolving cylinder grip. ISO 4027 grub screw (type with transverse bore).
- Accessory: K0173 Handwheel washers. K1160 Socket head screws with low head DIN 6912.
- RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
