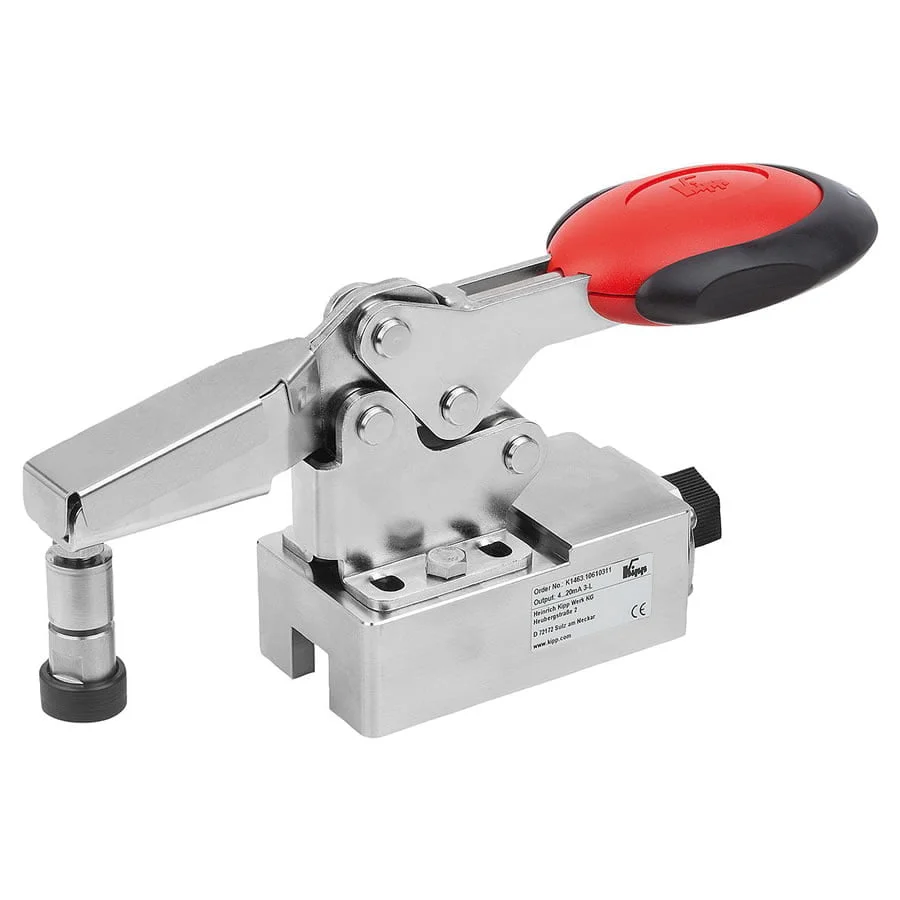

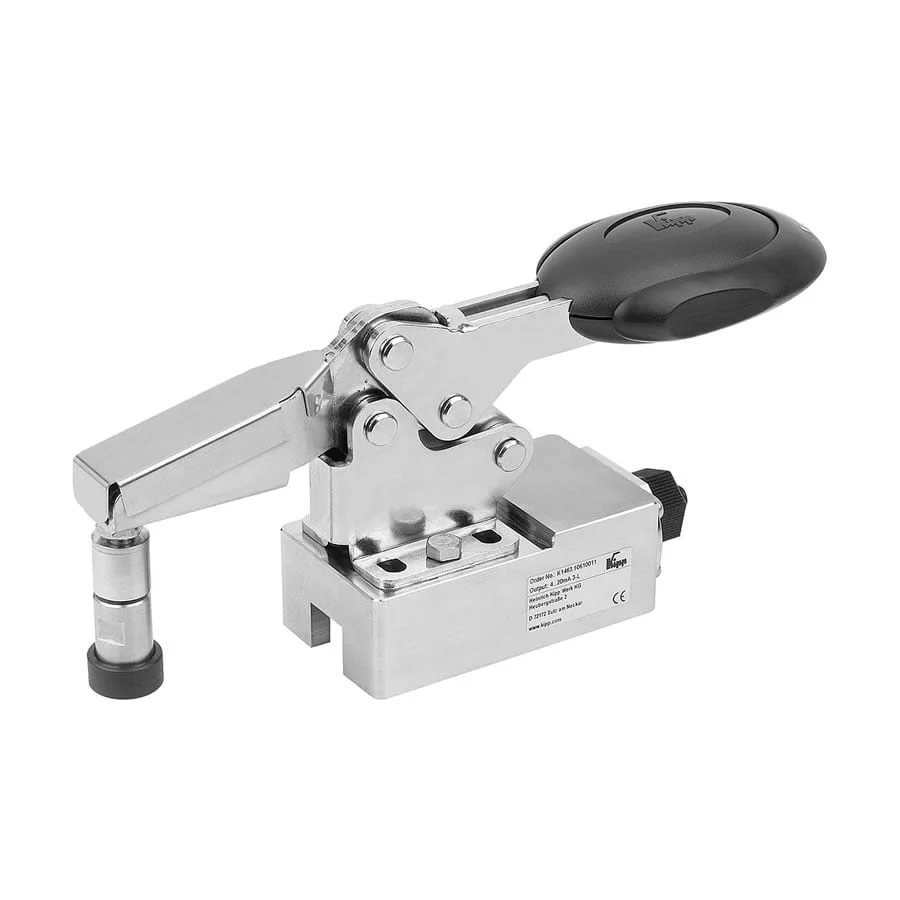

K1463 Kipp toggle clamps, horizontal, stainless steel with safety interlock and force sensor

K1463 Kipp Toggle Clamp with force sensor operating instructions

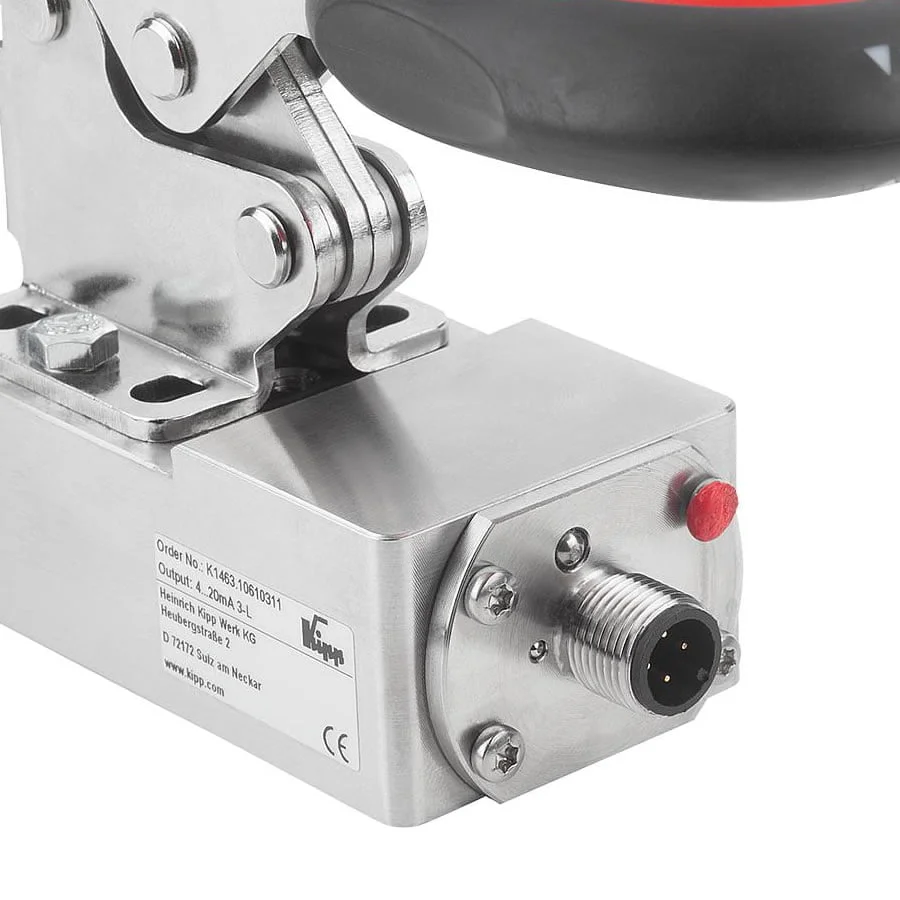

K1463 Kipp toggle clamps, horizontal, stainless steel with safety interlock and force sensor. Toggle clamps are used to hold and clamp workpieces. They are used as mounting and holding fixtures. The toggle clamp with force sensor enables measurement and adjustment of the retaining force. Workpieces can be defined and the retaining force recorded. The clamping element is used to adjust the retaining force. Clamping elements with different heights are available for workpieces with different thicknesses.

• Material: Clamp stainless steel. Grip polyamide. Release lever TPE. Force sensor stainless steel. Electronics housing stainless steel. Spacer sleeve stainless steel. Grub screw stainless steel. Protective cap thermoplastic.
• Version: Stainless steel parts bright. Protective cap black.
• Note: incl. 1 set clamping elements K1464
• Technical data: in the datasheet

• Accessory: K1464

• Kipp Edelstahl stainless steel products: Products marked with this symbol are made of stainless steel. The austenitic alloy 1.4305 is mainly used here.
• FEATUREgrip products: With the new FEATUREgrip product range, KIPP has developed and offers smart components and solutions that deliver information and can be networked and so are suitable for Industry 4.0. The aim is for customers to use these intelligent components to help make digitised manufacturing processes more stable, precise and reliable by providing additional information.
• RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
