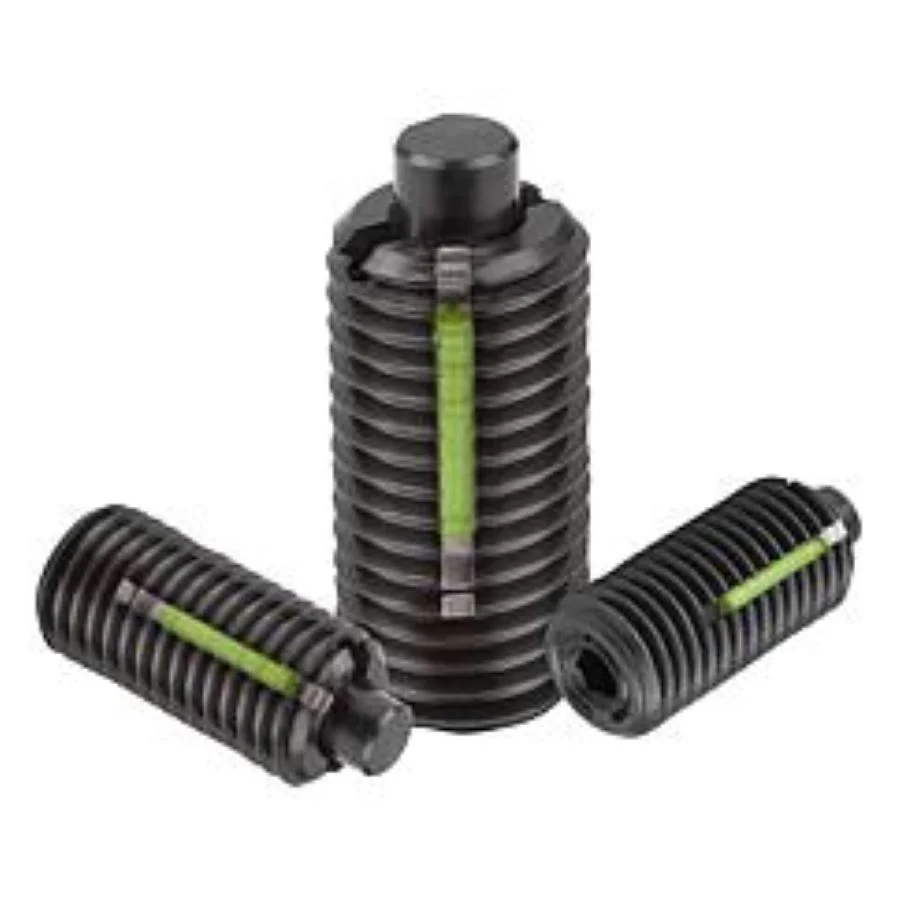

K1371 Kipp spring plungers with hexagon socket and flattened thrust pin, steal, LONG-LOK secured

Material
Sleeve steel grade 5.8.
Thrust pin steel.
Spring grade D steel wire.

LONG-LOK thread lock nylon.

Version:
Black oxidised.
Thrust pin hardened.

Note:
These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.

Drawing reference:
L2 = ca. two full threads

1) grub screw glued-in

Special features:

Order No. K1371.05 K1371.06 K1371.08 K1371.10 K1371.12 K1371.16
