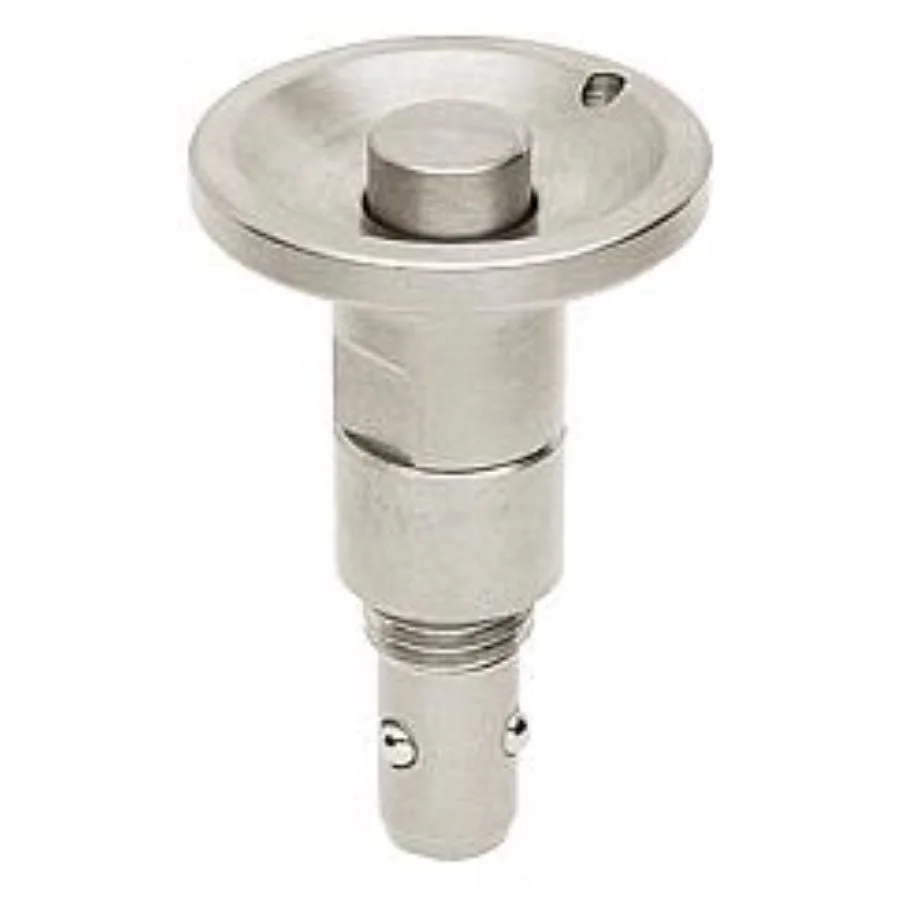

K1063 Kipp ball lock pins

Material:
Housing and push button steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.

Version:
Housing nickel-plated.
Knob tempered and nickel-plated.
Ball tempered.

Note:
Installation dimensions for Form A for plate thickness 6 mm.
Installation dimensions for Form B for plate thickness 6 to 16 mm.

Attention:
The specified pullout forces only apply in conjunction with locating bush K1065.

Accessory:
Locating bush K1065.

Special features:

Order No. K1063.621 K1063.1024
