K1022_B Kipp Drill bushes flanged DIN 172 Form B

K1022_B Kipp Drill bushes flanged DIN 172 Form B

View product information as a PDF datasheet:
Product Specification Datasheet for K1022_B Kipp Drill bushes flanged DIN 172 Form BView CAD Files

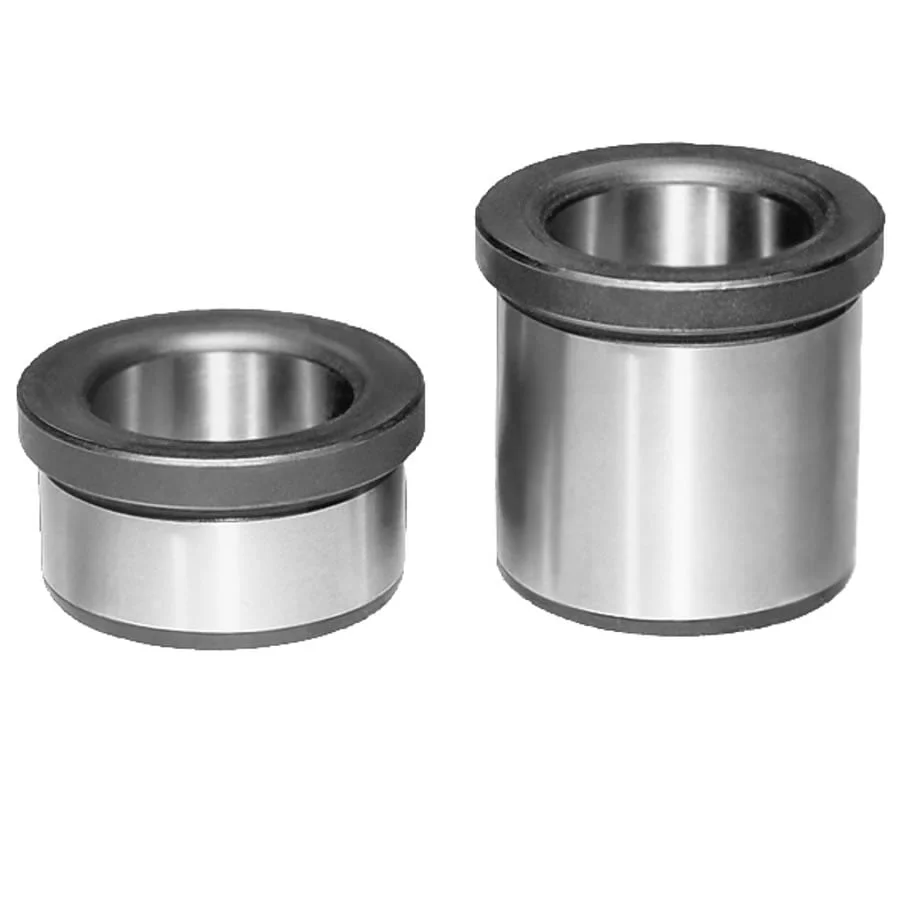

Kipp Flanged drill bushes (DIN 172) are made from a special low-carbon steel, case hardened and ground according to DIN 172. They are identifiable by the overhanging flange. These prevent the bushes being pushed through the fixture hole during use. Form B has bore hole rounded at both ends.

  • Material: Special steel.
  • Version: Hardened and ground. Hardness 740 ±80 HV 10.
  • Note: From diameter D1 over 15 mm size increases are 0.5 mm.

Advantages of Kipp drill bushes:

  • The drilling position does not need to be repeatedly measured and marked out
  • The drill runs straight and stable, even by rounded workpieces
  • The fixed entry angle leads to constantly good results
  • Easier and quicker positioning of workpieces on mounting plates
  • Adaptation of bores for the precise fitting of indexing plungers

RoHS compliant product

Categories: , Tag:

Order No:

K1022.B0040X06 K1022.B0060X06 K1022.B0070X06 K1022.B0080X06 K1022.B0090X06 K1022.B0090X09 K1022.B0100X06 K1022.B0100X09 K1022.B0110X06 K1022.B0110X09 K1022.B0120X06 K1022.B0120X09 K1022.B0130X06 K1022.B0130X09 K1022.B0140X06 K1022.B0140X09 K1022.B0150X06 K1022.B0150X09 K1022.B0160X06 K1022.B0160X09 K1022.B0170X06 K1022.B0170X09 K1022.B0180X06 K1022.B0180X09 K1022.B0190X06 K1022.B0190X09 K1022.B0200X06 K1022.B0200X09 K1022.B0210X06 K1022.B0210X09 K1022.B0220X06 K1022.B0220X09 K1022.B0230X06 K1022.B0230X09 K1022.B0240X06 K1022.B0240X09 K1022.B0250X06 K1022.B0250X09 K1022.B0260X06 K1022.B0260X09 K1022.B0270X08 K1022.B0270X12 K1022.B0270X16 K1022.B0280X08 K1022.B0280X12 K1022.B0280X16 K1022.B0290X08 K1022.B0290X12 K1022.B0290X16 K1022.B0300X08 K1022.B0300X12 K1022.B0300X16 K1022.B0310X08 K1022.B0310X12 K1022.B0310X16 K1022.B0320X08 K1022.B0320X12 K1022.B0320X16 K1022.B0330X08 K1022.B0330X12 K1022.B0330X16 K1022.B0340X08 K1022.B0340X12 K1022.B0340X16 K1022.B0350X08 K1022.B0350X12 K1022.B0350X16 K1022.B0360X08 K1022.B0360X12 K1022.B0360X16 K1022.B0370X08 K1022.B0370X12 K1022.B0370X16 K1022.B0380X08 K1022.B0380X12 K1022.B0380X16 K1022.B0390X08 K1022.B0390X12 K1022.B0390X16 K1022.B0400X08 K1022.B0400X12 K1022.B0400X16 K1022.B0410X08 K1022.B0410X12 K1022.B0410X16 K1022.B0420X08 K1022.B0420X12 K1022.B0420X16 K1022.B0430X08 K1022.B0430X12 K1022.B0430X16 K1022.B0440X08 K1022.B0440X12 K1022.B0440X16 K1022.B0450X08 K1022.B0450X12 K1022.B0450X16 K1022.B0460X08 K1022.B0460X12 K1022.B0460X16 K1022.B0470X08 K1022.B0470X12 K1022.B0470X16 K1022.B0480X08 K1022.B0480X12 K1022.B0480X16 K1022.B0490X08 K1022.B0490X12 K1022.B0490X16 K1022.B0500X08 K1022.B0500X12 K1022.B0500X16 K1022.B0510X10 K1022.B0510X16 K1022.B0510X20 K1022.B0520X10 K1022.B0520X16 K1022.B0520X20 K1022.B0530X10 K1022.B0530X16 K1022.B0530X20 K1022.B0540X10 K1022.B0540X16 K1022.B0540X20 K1022.B0550X10 K1022.B0550X16 K1022.B0550X20 K1022.B0560X10 K1022.B0560X16 K1022.B0560X20 K1022.B0570X10 K1022.B0570X16 K1022.B0570X20 K1022.B0580X10 K1022.B0580X16 K1022.B0580X20 K1022.B0590X10 K1022.B0590X16 K1022.B0590X20 K1022.B0600X10 K1022.B0600X16 K1022.B0600X20 K1022.B0610X10 K1022.B0610X16 K1022.B0610X20 K1022.B0620X10 K1022.B0620X16 K1022.B0620X20 K1022.B0630X10 K1022.B0630X16 K1022.B0630X20 K1022.B0640X10 K1022.B0640X16 K1022.B0640X20 K1022.B0650X10 K1022.B0650X16 K1022.B0650X20 K1022.B0660X10 K1022.B0660X16 K1022.B0660X20 K1022.B0670X10 K1022.B0670X16 K1022.B0670X20 K1022.B0680X10 K1022.B0680X16 K1022.B0680X20 K1022.B0690X10 K1022.B0690X16 K1022.B0690X20 K1022.B0700X10 K1022.B0700X16 K1022.B0700X20 K1022.B0710X10 K1022.B0710X16 K1022.B0710X20 K1022.B0720X10 K1022.B0720X16 K1022.B0720X20 K1022.B0730X10 K1022.B0730X16 K1022.B0730X20 K1022.B0740X10 K1022.B0740X16 K1022.B0740X20 K1022.B0750X10 K1022.B0750X16 K1022.B0750X20 K1022.B0760X10 K1022.B0760X16 K1022.B0760X20 K1022.B0770X10 K1022.B0770X16 K1022.B0770X20 K1022.B0780X10 K1022.B0780X16 K1022.B0780X20 K1022.B0790X10 K1022.B0790X16 K1022.B0790X20 K1022.B0800X10 K1022.B0800X16 K1022.B0800X20 K1022.B0810X12 K1022.B0810X20 K1022.B0810X25 K1022.B0820X12 K1022.B0820X20 K1022.B0820X25 K1022.B0830X12 K1022.B0830X20 K1022.B0830X25 K1022.B0840X12 K1022.B0840X20 K1022.B0840X25 K1022.B0850X12 K1022.B0850X20 K1022.B0850X25 K1022.B0860X12 K1022.B0860X20 K1022.B0860X25 K1022.B0870X12 K1022.B0870X20 K1022.B0870X25 K1022.B0880X12 K1022.B0880X20 K1022.B0880X25 K1022.B0890X12 K1022.B0890X20 K1022.B0890X25 K1022.B0900X12 K1022.B0900X20 K1022.B0900X25 K1022.B0910X12 K1022.B0910X20 K1022.B0910X25 K1022.B0920X12 K1022.B0920X20 K1022.B0920X25 K1022.B0930X12 K1022.B0930X20 K1022.B0930X25 K1022.B0940X12 K1022.B0940X20 K1022.B0940X25 K1022.B0950X12 K1022.B0950X20 K1022.B0950X25 K1022.B0960X12 K1022.B0960X20 K1022.B0960X25 K1022.B0970X12 K1022.B0970X20 K1022.B0970X25 K1022.B0980X12 K1022.B0980X20 K1022.B0980X25 K1022.B0990X12 K1022.B0990X20 K1022.B0990X25 K1022.B1000X12 K1022.B1000X20 K1022.B1000X25 K1022.B1010X12 K1022.B1010X20 K1022.B1010X25 K1022.B1020X12 K1022.B1020X20 K1022.B1020X25 K1022.B1030X12 K1022.B1030X20 K1022.B1030X25 K1022.B1040X12 K1022.B1040X20 K1022.B1040X25 K1022.B1050X12 K1022.B1050X20 K1022.B1050X25 K1022.B1060X12 K1022.B1060X20 K1022.B1060X25 K1022.B1070X12 K1022.B1070X20 K1022.B1070X25 K1022.B1080X12 K1022.B1080X20 K1022.B1080X25 K1022.B1090X12 K1022.B1090X20 K1022.B1090X25 K1022.B1100X12 K1022.B1100X20 K1022.B1100X25 K1022.B1110X12 K1022.B1110X20 K1022.B1110X25 K1022.B1120X12 K1022.B1120X20 K1022.B1120X25 K1022.B1130X12 K1022.B1130X20 K1022.B1130X25 K1022.B1140X12 K1022.B1140X20 K1022.B1140X25 K1022.B1150X12 K1022.B1150X20 K1022.B1150X25 K1022.B1160X12 K1022.B1160X20 K1022.B1160X25 K1022.B1170X12 K1022.B1170X20 K1022.B1170X25 K1022.B1180X12 K1022.B1180X20 K1022.B1180X25 K1022.B1190X12 K1022.B1190X20 K1022.B1190X25 K1022.B1200X12 K1022.B1200X20 K1022.B1200X25 K1022.B1210X16 K1022.B1210X28 K1022.B1210X36 K1022.B1220X16 K1022.B1220X28 K1022.B1220X36 K1022.B1230X16 K1022.B1230X28 K1022.B1230X36 K1022.B1240X16 K1022.B1240X28 K1022.B1240X36 K1022.B1250X16 K1022.B1250X28 K1022.B1250X36 K1022.B1260X16 K1022.B1260X28 K1022.B1260X36 K1022.B1270X16 K1022.B1270X28 K1022.B1270X36 K1022.B1280X16 K1022.B1280X28 K1022.B1280X36 K1022.B1290X16 K1022.B1290X28 K1022.B1290X36 K1022.B1300X16 K1022.B1300X28 K1022.B1300X36 K1022.B1310X16 K1022.B1310X28 K1022.B1310X36 K1022.B1320X16 K1022.B1320X28 K1022.B1320X36 K1022.B1330X16 K1022.B1330X28 K1022.B1330X36 K1022.B1340X16 K1022.B1340X28 K1022.B1340X36 K1022.B1350X16 K1022.B1350X28 K1022.B1350X36 K1022.B1360X16 K1022.B1360X28 K1022.B1360X36 K1022.B1370X16 K1022.B1370X28 K1022.B1370X36 K1022.B1380X16 K1022.B1380X28 K1022.B1380X36 K1022.B1390X16 K1022.B1390X28 K1022.B1390X36 K1022.B1400X16 K1022.B1400X28 K1022.B1400X36 K1022.B1410X16 K1022.B1410X28 K1022.B1410X36 K1022.B1420X16 K1022.B1420X28 K1022.B1420X36 K1022.B1430X16 K1022.B1430X28 K1022.B1430X36 K1022.B1440X16 K1022.B1440X28 K1022.B1440X36 K1022.B1450X16 K1022.B1450X28 K1022.B1450X36 K1022.B1460X16 K1022.B1460X28 K1022.B1460X36 K1022.B1470X16 K1022.B1470X28 K1022.B1470X36 K1022.B1480X16 K1022.B1480X28 K1022.B1480X36 K1022.B1490X16 K1022.B1490X28 K1022.B1490X36 K1022.B1500X16 K1022.B1500X28 K1022.B1500X36 K1022.B1550X16 K1022.B1550X28 K1022.B1550X36 K1022.B1600X16 K1022.B1600X28 K1022.B1600X36 K1022.B1650X16 K1022.B1650X28 K1022.B1650X36 K1022.B1700X16 K1022.B1700X28 K1022.B1700X36 K1022.B1750X16 K1022.B1750X28 K1022.B1750X36 K1022.B1800X16 K1022.B1800X28 K1022.B1800X36 K1022.B1850X20 K1022.B1850X36 K1022.B1850X45 K1022.B1900X20 K1022.B1900X36 K1022.B1900X45 K1022.B1950X20 K1022.B1950X36 K1022.B1950X45 K1022.B2000X20 K1022.B2000X36 K1022.B2000X45 K1022.B2050X20 K1022.B2050X36 K1022.B2050X45 K1022.B2100X20 K1022.B2100X36 K1022.B2100X45 K1022.B2150X20 K1022.B2150X36 K1022.B2150X45 K1022.B2200X20 K1022.B2200X36 K1022.B2200X45 K1022.B2250X20 K1022.B2250X36 K1022.B2250X45 K1022.B2300X20 K1022.B2300X36 K1022.B2300X45 K1022.B2350X20 K1022.B2350X36 K1022.B2350X45 K1022.B2400X20 K1022.B2400X36 K1022.B2400X45 K1022.B2450X20 K1022.B2450X36 K1022.B2450X45 K1022.B2500X20 K1022.B2500X36 K1022.B2500X45 K1022.B2550X20 K1022.B2550X36 K1022.B2550X45 K1022.B2600X20 K1022.B2600X36 K1022.B2600X45 K1022.B2650X25 K1022.B2650X45 K1022.B2650X56 K1022.B2700X25 K1022.B2700X45 K1022.B2700X56 K1022.B2750X25 K1022.B2750X45 K1022.B2750X56 K1022.B2800X25 K1022.B2800X45 K1022.B2800X56 K1022.B2850X25 K1022.B2850X45 K1022.B2850X56 K1022.B2900X25 K1022.B2900X45 K1022.B2900X56 K1022.B2950X25 K1022.B2950X45 K1022.B2950X56 K1022.B3000X25 K1022.B3000X45 K1022.B3000X56 K1022.B3050X25 K1022.B3050X45 K1022.B3050X56 K1022.B3100X25 K1022.B3100X45 K1022.B3100X56 K1022.B3150X25 K1022.B3150X45 K1022.B3150X56 K1022.B3200X25 K1022.B3200X45 K1022.B3200X56 K1022.B3250X25 K1022.B3250X45 K1022.B3250X56 K1022.B3300X25 K1022.B3300X45 K1022.B3300X56 K1022.B3350X25 K1022.B3350X45 K1022.B3350X56 K1022.B3400X25 K1022.B3400X45 K1022.B3400X56 K1022.B3450X25 K1022.B3450X45 K1022.B3450X56 K1022.B3500X25 K1022.B3500X45 K1022.B3500X56 K1022.B3550X30 K1022.B3550X56 K1022.B3550X67 K1022.B3600X30 K1022.B3600X56 K1022.B3600X67 K1022.B3650X30 K1022.B3650X56 K1022.B3650X67 K1022.B3700X30 K1022.B3700X56 K1022.B3700X67 K1022.B3750X30 K1022.B3750X56 K1022.B3750X67 K1022.B3800X30 K1022.B3800X56 K1022.B3800X67 K1022.B3850X30 K1022.B3850X56 K1022.B3850X67 K1022.B3900X30 K1022.B3900X56 K1022.B3900X67 K1022.B3950X30 K1022.B3950X56 K1022.B3950X67 K1022.B4000X30 K1022.B4000X56 K1022.B4000X67 K1022.B4050X30 K1022.B4050X56 K1022.B4050X67 K1022.B4100X30 K1022.B4100X56 K1022.B4100X67 K1022.B4150X30 K1022.B4150X56 K1022.B4150X67 K1022.B4200X30 K1022.B4200X56 K1022.B4200X67 K1022.B4250X30 K1022.B4250X56 K1022.B4250X67 K1022.B4300X30 K1022.B4300X56 K1022.B4300X67 K1022.B4350X30 K1022.B4350X56 K1022.B4350X67 K1022.B4400X30 K1022.B4400X56 K1022.B4400X67 K1022.B4450X30 K1022.B4450X56 K1022.B4450X67 K1022.B4500X30 K1022.B4500X56 K1022.B4500X67 K1022.B4550X30 K1022.B4550X56 K1022.B4550X67 K1022.B4600X30 K1022.B4600X56 K1022.B4600X67 K1022.B4650X30 K1022.B4650X56 K1022.B4650X67 K1022.B4700X30 K1022.B4700X56 K1022.B4700X67 K1022.B4750X30 K1022.B4750X56 K1022.B4750X67 K1022.B4800X30 K1022.B4800X56 K1022.B4800X67
