K1022_A Kipp Drill bushes flanged DIN 172 Form A

K1022_A Kipp Drill bushes flanged DIN 172 Form A

View product information as a PDF datasheet:
Product Specification Datasheet for K1022_A Kipp Drill bushes flanged DIN 172 Form AView CAD Files

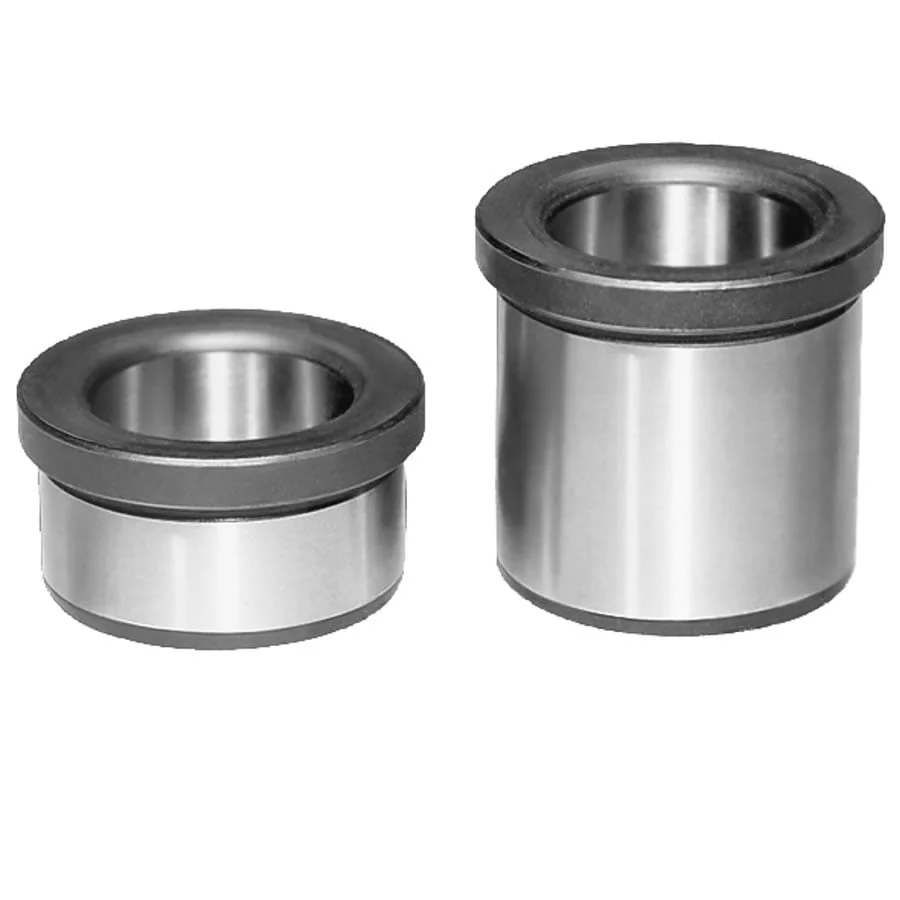

Kipp Flanged drill bushes (DIN 172) are made from a special low-carbon steel, case hardened and ground according to DIN 172. They are identifiable by the overhanging flange. These prevent the bushes being pushed through the fixture hole during use. Form A has bore hole rounded at one end (flanged end).

  • Material: Special steel.
  • Version: Hardened and ground. Hardness 740 ±80 HV 10.
  • Note: From diameter D1 over 15 mm size increases are 0.5 mm.

Advantages of Kipp drill bushes:

  • The drilling position does not need to be repeatedly measured and marked out
  • The drill runs straight and stable, even by rounded workpieces
  • The fixed entry angle leads to constantly good results
  • Easier and quicker positioning of workpieces on mounting plates
  • Adaptation of bores for the precise fitting of indexing plungers

RoHS compliant product
