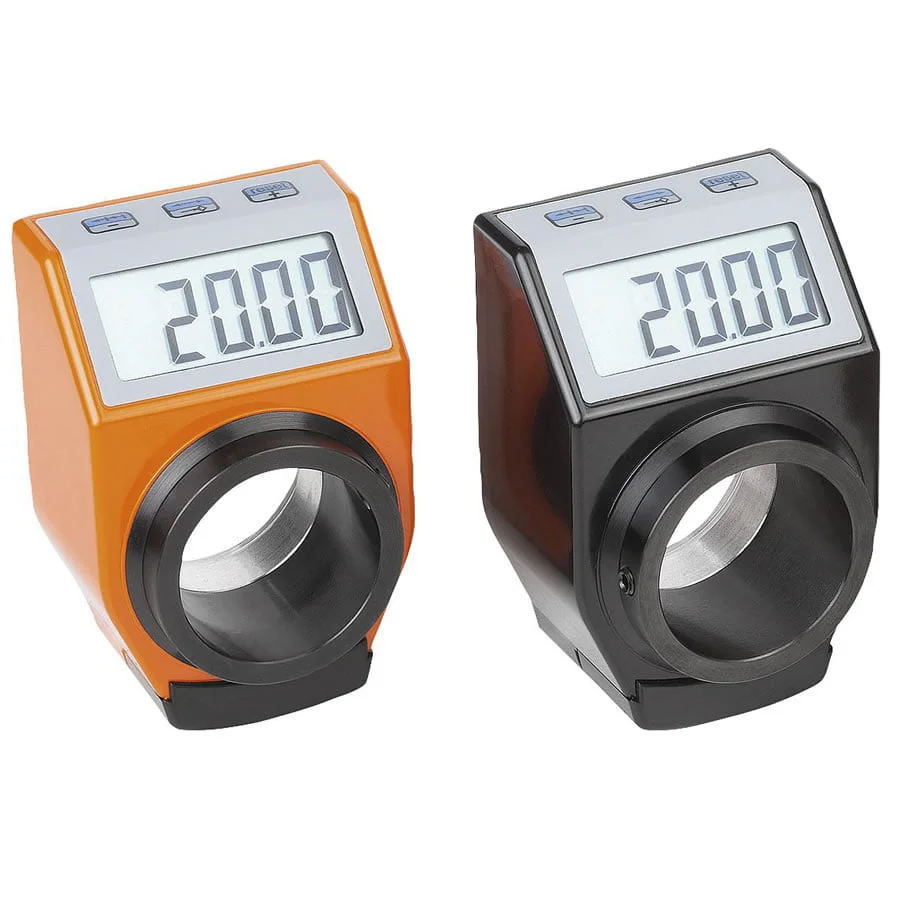

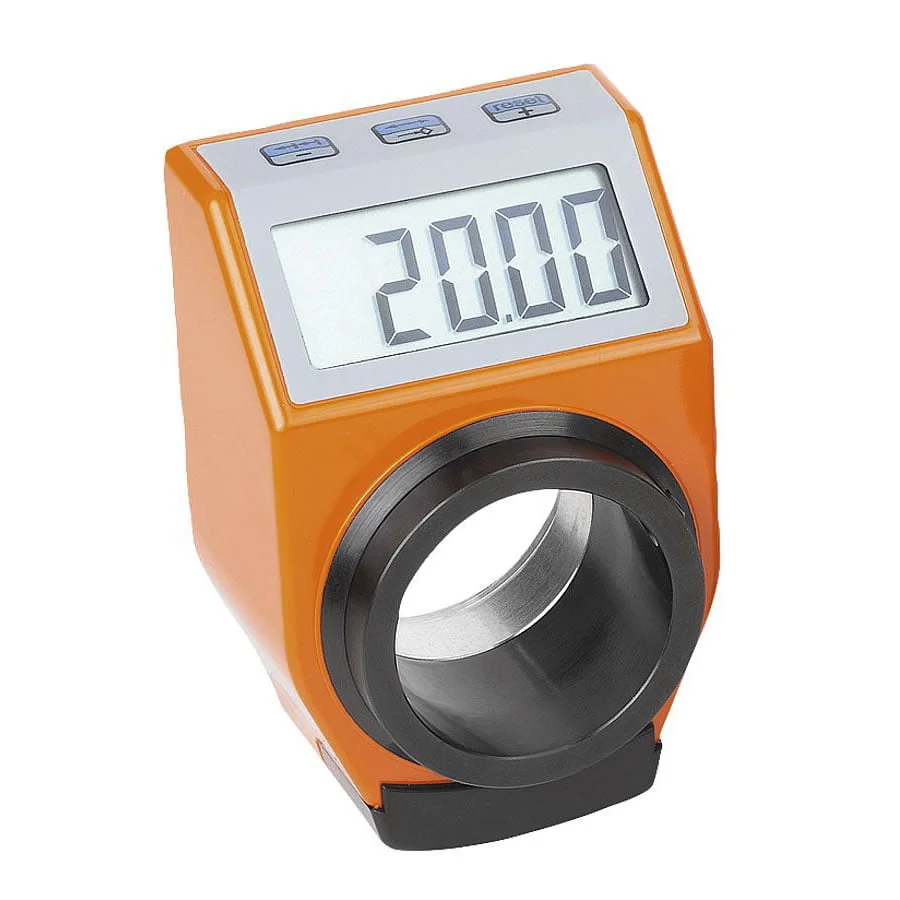

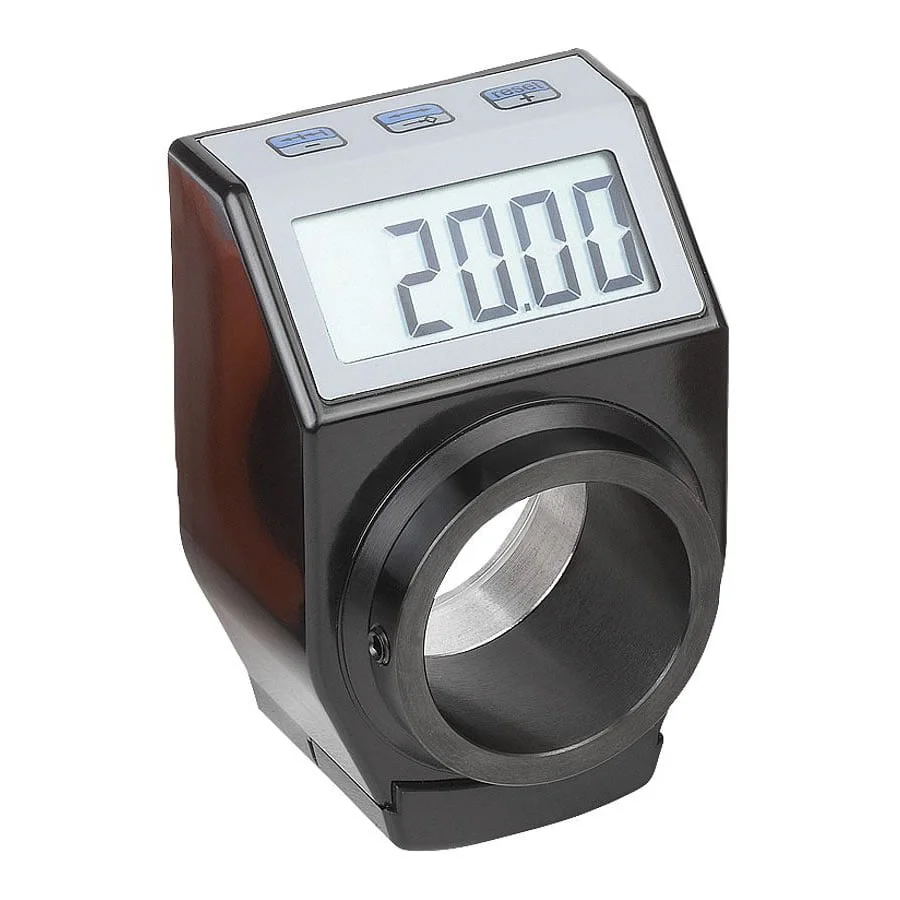

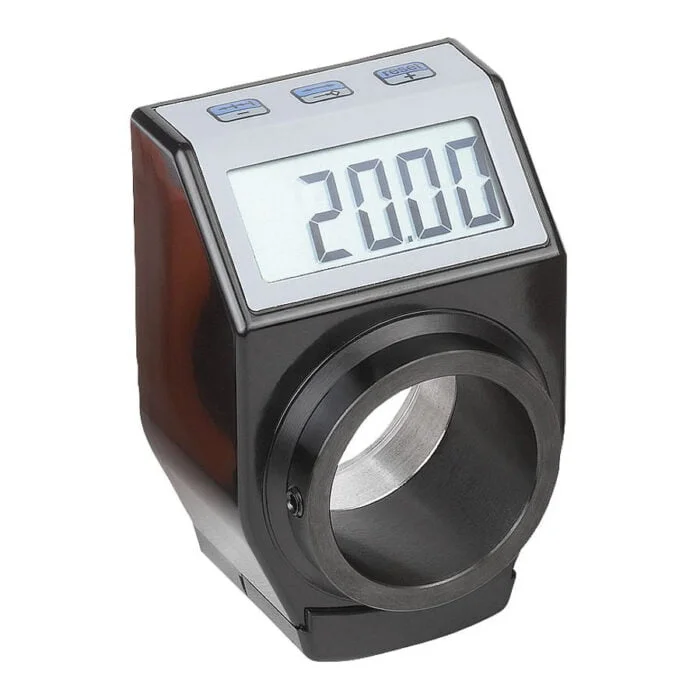

K0411 Kipp Position indicators programmed

The electronic position indicators offer diverse opportunities compared to mechanical position indicators because they display angles as well as uncommon spindle pitches and record each fraction of spindle movement.
* Freely programmable parameters using the programming software K0411.09.

• Material: Housing plastic. Hollow shaft steel. Screen LCD display. Grub screw steel.
• Version: Hollow shaft black oxidised. Grub screw black.
• Technical data: LCD Display with 5 digits. Digit size approx. 11.5 mm. Display range from -19999 … 99999. Tunular shaft Ø 30 H7 mm. Operating temperature -10 °C to +60 °C. Storage temperature -30 °C to +80 °C. Revolution max. 600 rpm. Lithium battery Button cell 3V, type CR 2032. service life approx. 2 years. Vibration-resistance according to DIN IEC 68-2-6 10 g / (5 … 150 Hz), 20 g / (100 … 2000 Hz). Shock-resistance according to DIN IEC 68-2-27 30 g / 15 ms. EMC DIN EN 61000-4-2; DIN EN 61000-4-4. Type of protection IP 51.
• Features: Indicated value and decimal point freely programmable. Linear or angle mode. Function key for zero-point position. Function key for switching between the absolute dimension and chain dimension. Programming of an offset value directly at the device. Easy battery change.
• Accessory: Reducing bushes K0412, programming software K0411.09.

• RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
