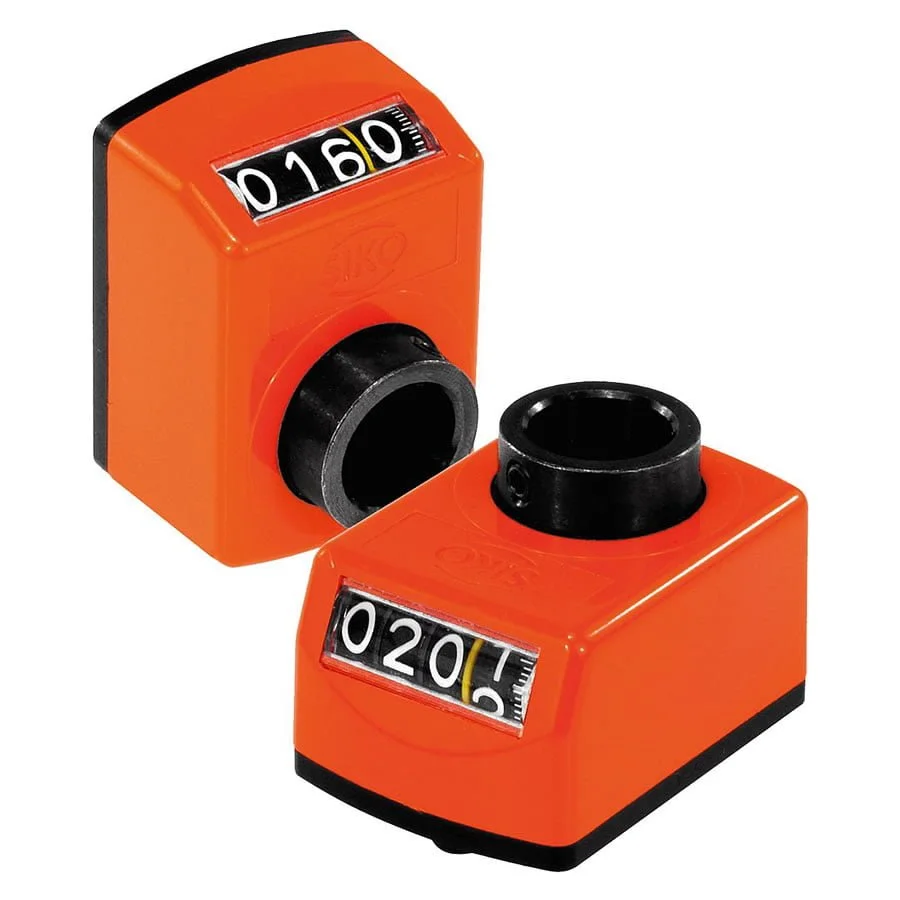

K0409 Kipp position indicators (Seeko)

Position indicators allow direct reading of input measurement values at a glance. In addition, the value indicated per spindle rotation (corresponding spindle pitch) can be selected and the various indicator values are realised by a transmission gear. The position indicators are distinguished by their small construction with very clear display and fine scale. They are especially suitable for small spindle distances and small shaft diameters and have a torque support that is positioned in a hole on the side.

** At the 1st asterisk give assembly position and at the 2nd asterisk give the count direction (see sample order “assembly position, count direction”).

• Material: Housing polyamide 6. Hollow shaft steel. Screen plastic. Grub screw steel.
• Version: Impact-resistant housing. Hollow shaft black oxidised. Grub screw black. Dial black, digits white.
• On request: Counter cover made of mineral glass. Stainless steel driveshaft. Axial sealing (dust-proof). Vibration protection.
• Accessory: Reducing bushes K0412. Insert plate K0413. Mounting plates K0414.

• RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
