K0268 Kipp crank handles with safety grip

K0268 Kipp crank handles with safety grip. The hub cover is supplied unassembled. The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 cap screw and DIN 7349 washer.

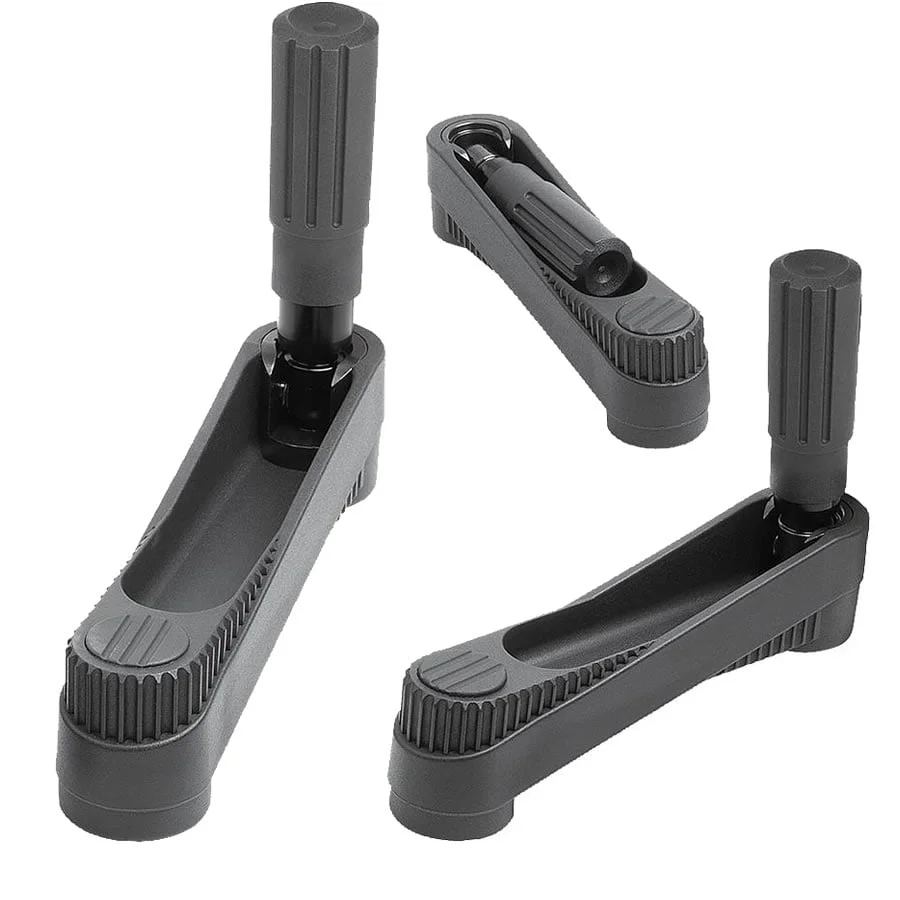

Two actions must be made to bring the safety cylinder grip into an operating position:
– Swing the grip out around the pivot shaft until it stops (90°).
– Push the grip in an axial direction into the lock position.

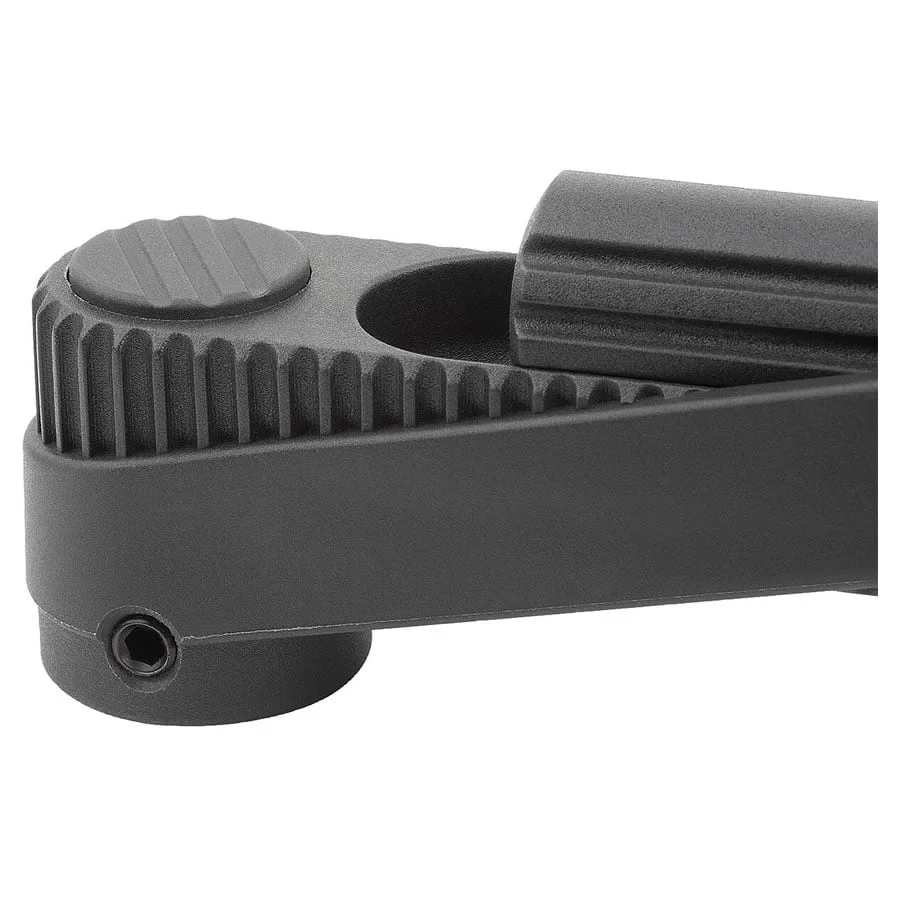

The pushed-in position is the most comfortable for cranking. The grip swings back automatically after releasing. Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.

Available in 3 forms:

• Form PBON – with reamed hole no keyway
• Form PBMN – with reamed hole and keyway
• Form IV – with square socket

Description:

• Material: Crank thermoplastic. Cylinder grip thermoplastic and steel.
• Version: Black grey thermoplastic. Steel parts black oxidised.
• Accessory: K1160 cap screws screws, low head DIN 6912.

• NOVOgrip product line: Our NOVOgrip product line is the classic in the plastics sector – well thought out in every detail. Sophisticated design, easy-grip shape and good value for money. All the plastic elements are available in several colour combinations and the most varied sizes.
